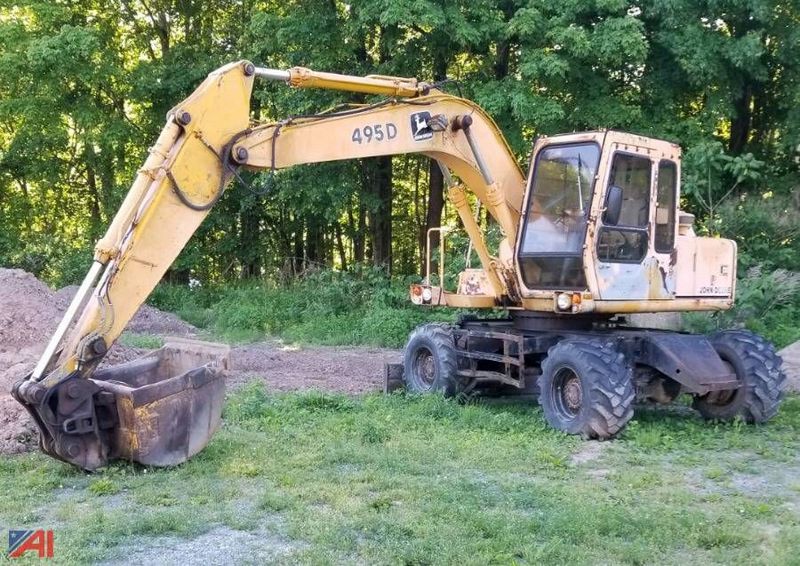

John Deere 495D
Browse All John Deere or Hydraulic Excavator Models
Contents:
Dimensions
| Width To Outside Of Tracks | 9.5 ft in (2895.6 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 series |
| Net Power | 95 hp (70.9 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 284 lb ft (385.1 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 26184 lb (11876.9 kg) |
| Fuel Capacity | 66 gal (249.9 L) |
| Cooling System Fluid Capacity | 5.6 gal (21 L) |
| Hydraulic System Fluid Capacity | 19 gal (72 L) |
| Engine Oil Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.9 gal (3.2 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 4050 psi (27923.8 kPa) |
| Hydraulic Pump Flow Capacity | 18 gal/min (68.2 L/min) |
Swing Mechanism
| Swing Speed | 25 rpm |
