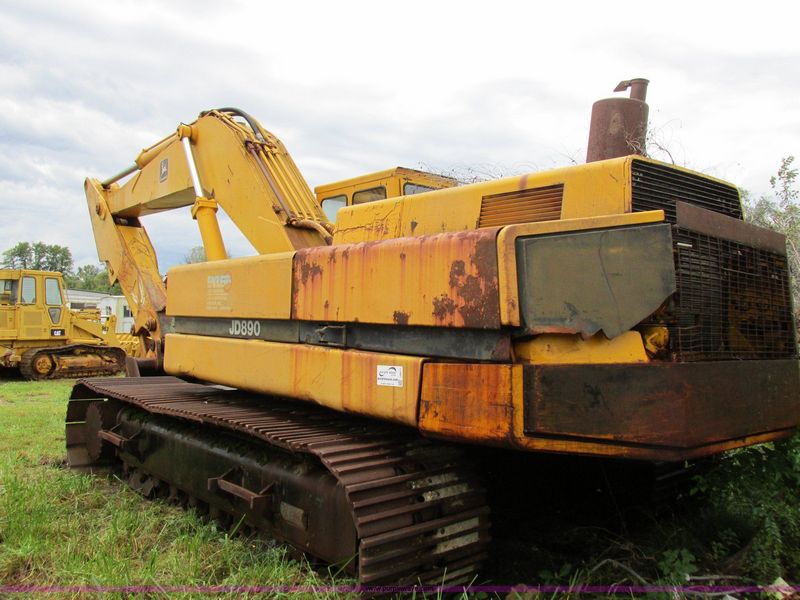

John Deere 890
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 40 ft in (12100 mm) |
| Shipping Height Of Unit | 12.08 ft in (3700 mm) |
Dimensions
| Width To Outside Of Tracks | 11.92 ft in (3600 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 500 Series |
| Net Power | 250 hp (186 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 810 lb ft (1098 Nm) |
| Displacement | 619 cu in (10.1 L) |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 92600 lb (42040 kg) |
| Fuel Capacity | 128 gal (484.5 L) |
| Cooling System Fluid Capacity | 19 gal (72 L) |
| Hydraulic System Fluid Capacity | 92 gal (348.2 L) |
| Engine Oil Capacity | 36 gal (34 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 9.3 gal (8.8 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 2700 psi (18615 kPa) |
| Hydraulic Pump Flow Capacity | 55 gal/min (208 L/min) |
Swing Mechanism
| Swing Speed | 6 rpm |
