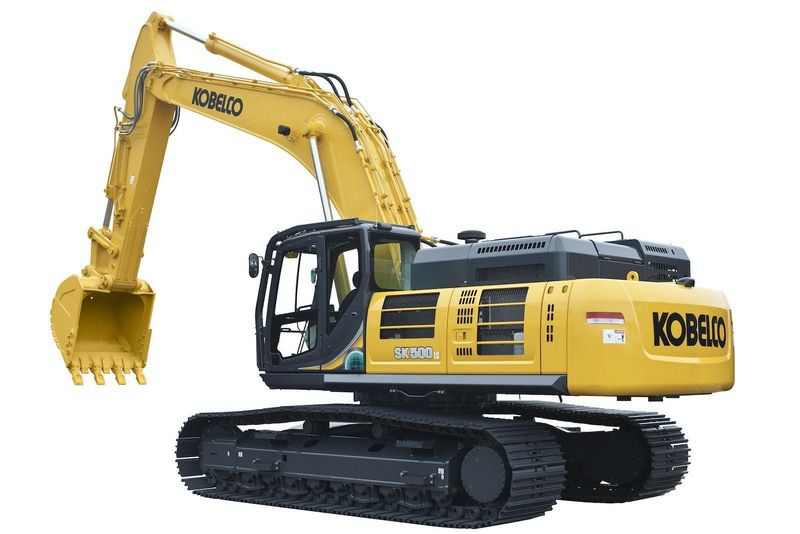

Kobelco SK500LC-10 H&W
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 22.3 ft in (6797.04 mm) |
| Max Digging Depth | 24.6 ft in (7498.08 mm) |
| Minimum Swing Radius | 202.37 in (5140 mm) |
| Max Digging Reach On Ground | 38.71 ft in (11795.76 mm) |
| Min Dumping Clearance | 10.3 ft in (3139.44 mm) |
| Max Digging Reach | 39.71 ft in (12100.56 mm) |
| Max Digging Height | 37 ft in (11277.6 mm) |
| Horizontal Digging Stroke - Ground Level | 20.3 ft in (6187.44 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 23 ft / Arm - 11 ft 4 in |
| Max Dumping Clearance | 26 ft in (7924.8 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 23.6 ft in (7193.28 mm) |
| Max Digging Depth | 26.5 ft in (8077.2 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 23 ft / Arm - 13 ft 3 in |
| Horizontal Digging Stroke - Ground | 23.5 ft in (7162.8 mm) |
| Max. Digging Height | 37.8 ft in (11521.44 mm) |
| Max Digging Reach | 41.4 ft in (12618.72 mm) |
| Min Dumping Clearance | 8.4 ft in (2.57 m) |
| Max Digging Reach On Ground | 40.5 ft in (12344.4 mm) |
| Minimum Swing Radius | 204.73 in (5200 mm) |
| Max Dumping Clearance | 26.8 ft in (8168.64 mm) |
Boom/Stick Option (Hex) 3
| Max Reach Along Ground | 43.4 ft in (13228.32 mm) |
| Max Vertical Wall Digging Depth | 26.5 ft in (8077.2 mm) |
| Max Digging Depth | 29.3 ft in (8930.64 mm) |
| Minimum Swing Radius | 209.06 in (5310 mm) |
| Max Dumping Clearance | 28.4 ft in (8656.32 mm) |
| Max Digging Reach | 44.3 ft in (13502.64 mm) |
| Horizontal Digging Stroke - Ground | 27.5 ft in (8382 mm) |
| Max. Digging Height | 39.6 ft in (12070.08 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 23 ft / Arm - 16 ft 1 in |
| Min Dumping Clearance | 5.6 ft in (1706.88 mm) |
Dimensions
| Ground Clearance | 2.1 ft in (640.09 mm) |
| Height To Top Of Cab | 12.3 ft in (3749.04 mm) |
| Tail Swing Radius | 12.6 ft in (3840.48 mm) |
| Track Gauge | 10.6 ft in (3230.88 mm) |
| Shoe Width | 2.63 ft in (800 mm) |
| Overall Height (To Top Of Boom) | 12 ft in (3657.6 mm) |
| Overall Length | 39.4 ft in (12009.12 mm) |
| Overall Length Of Crawler | 18 ft in (5486.4 mm) |
| Ground Clearance Of Rear End | 5.7 ft in (1737.36 mm) |
Undercarriage
| Shoe Size | 31.5 in (800 mm) |
| Ground Pressure | 10.6 psi (73.09 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Swing Torque | 134980 lb ft (183008.4 Nm) |
| Swing Speed | 7.6 rpm |
| Engine Model | HINO P11C-VN |
| Engine Type | Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger (Complies with EPA Tier IV Final) |
| Gross Power | 369 hp (275.2 kw) |
| Power Measured @ | 1850 rpm |
| Max Torque | 1084.3 lb ft (1470 Nm) |
| Displacement | 642 cu in (10.6 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Def Tank Capacity | 21.9 gal (83 L) |
| Gradeability-Laden | 70 % |
| Operating Weight | 124781.7 lb (56600 kg) |
| Fuel Capacity | 169.1 gal (640.2 L) |
Performance
| Bucket Digging Force -Sae | 57551.1 lb (256 kN) |
| Bucket Digging Force-Iso | 65644.3 lb (292 kN) |
| Arm Crowding Force- Iso | 49907.6 lb (222 kN) |
| Arm Crowd Force-Sae | 48109.2 lb (214 kN) |
| Drawbar Pull Force | 92621.3 lb (412 kN) |
Buckets
| Bucket Capacity - Heaped | 3.5 yd3 (2.7 m3) |
Hydraulic System
| Hydraulic System Tank | 98 gal (371 L) |
| Maxpumpflow | 97.8 gal/min (370.3 L/min) |
| Relief Valve Setting | 4550 |
| Pump Type | Two variable displacement pumps + one gear pump |
| Swing Motor | Axial piston motor |
