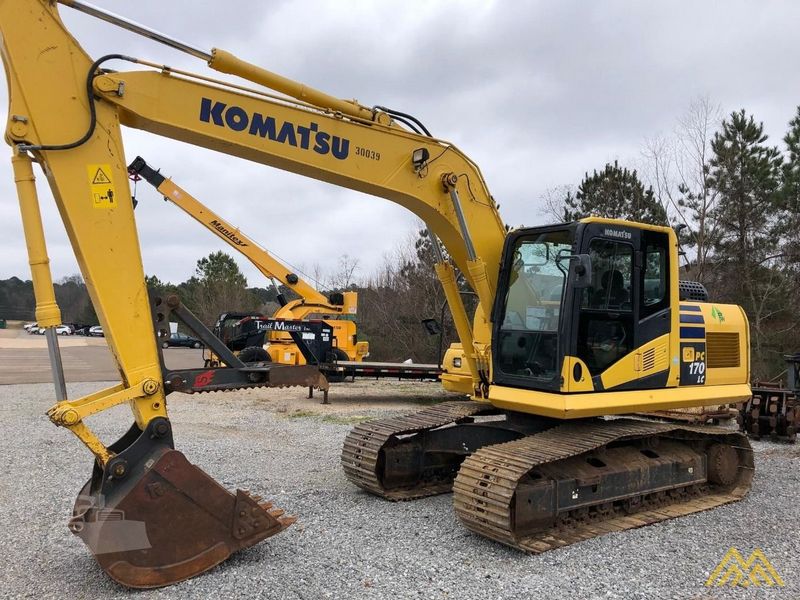

Komatsu PC170LC-10
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 15.95 ft in (4860 mm) |
| Max Digging Depth | 18.41 ft in (5610 mm) |
| Max Digging Height | 29.24 ft in (8910 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 2.25 m |
| Arm Crowd Force - Sae | 20503 lb (91.21 kN) |
| Bucket Digging Force - Sae | 24471.32 lb (108.86 kN) |
| Max.Dumping Height | 20.61 ft in (6280 mm) |
| Max Digging Reach | 28.48 ft in (8680 mm) |
| Minimum Swing Radius | 119.69 in (3040 mm) |
| Max Digging Reach On Ground | 27.92 ft in (8510 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 16.54 ft in (5040 mm) |
| Max Digging Depth | 19.56 ft in (5960 mm) |
| Max. Digging Height | 29.47 ft in (8980 mm) |
| Boom/Stick Option (Hex) 2 | Arm - 2.6 m |
| Arm Crowd Force-Sae | 18739.3 lb (83.36 kN) |
| Bucket Digging Force - Sae | 24471.32 lb (108.86 kN) |
| Minimum Swing Radius | 117.72 in (2990 mm) |
| Max.Dumping Height | 20.9 ft in (6370 mm) |
| Max Digging Reach | 29.4 ft in (8960 mm) |
| Max Digging Reach On Ground | 28.88 ft in (8800 mm) |
Boom/Stick Option (Hex) 3
| Max Reach Along Ground | 29.78 ft in (9075 mm) |
| Max Vertical Wall Digging Depth | 17.46 ft in (5320 mm) |
| Max Digging Depth | 20.51 ft in (6250 mm) |
| Arm Crowd Force-Sae | 17416.52 lb (77.48 kN) |
| Boom/Stick Option (Hex) 3 | Arm - 2.9 m |
| Bucket Digging Force - Sae | 24471.32 lb (108.86 kN) |
| Max Digging Reach | 30.3 ft in (9235 mm) |
| Max. Digging Height | 29.96 ft in (9130 mm) |
| Max.Dumping Height | 21.41 ft in (6525 mm) |
| Minimum Swing Radius | 117.92 in (2995 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.96 ft in (3035 mm) |
| Length Of Track On Ground | 14.28 ft in (4350 mm) |
| Tail Swing Radius | 8.21 ft in (2500 mm) |
| Track Gauge | 6.53 ft in (1990 mm) |
| Track Length | 156.11 in (3965 mm) |
| Overall Height (To Top Of Boom) | 9.95 ft in (3030 mm) |
| Overall Length | 10.21 ft in (3110 mm) |
| Removal Counterweight Clearance | 3.47 ft in (1055 mm) |
| Shoe Width | 2.63 ft in (800 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Drawbar Pull | 35163.74 lb (156.42 kN) |
| Number Of Shoes Per Side | 44 |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | SAA4D107E-2A |
| Net Power | 115 hp (85.8 kw) |
| Gross Power | 121 hp (90.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 272.2 cu in (4.5 L) |
| Aspiration | Turbocharged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Capacities
| Hydraulic Oil Tank | 32 gal (121 L) |
| Swing Drive | 1.2 gal (4.5 L) |
| Fuel Tank | 79.3 gal (300 L) |
| Final Drive | 1.5 gal (5.4 L) |
| Engine Oil | 4.8 gal (18 L) |
Operational
| Operating Weight | 38095.9 lb (17280 kg) |
| Operating Voltage | 24 V |
| Max Speed | 3.5 mph (5.5 km/h) |
| Hydraulic Pump Flow Capacity | 78.8 gal/min (298 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
| Swing Torque | 33190.3 lb ft (45000.1 Nm) |
