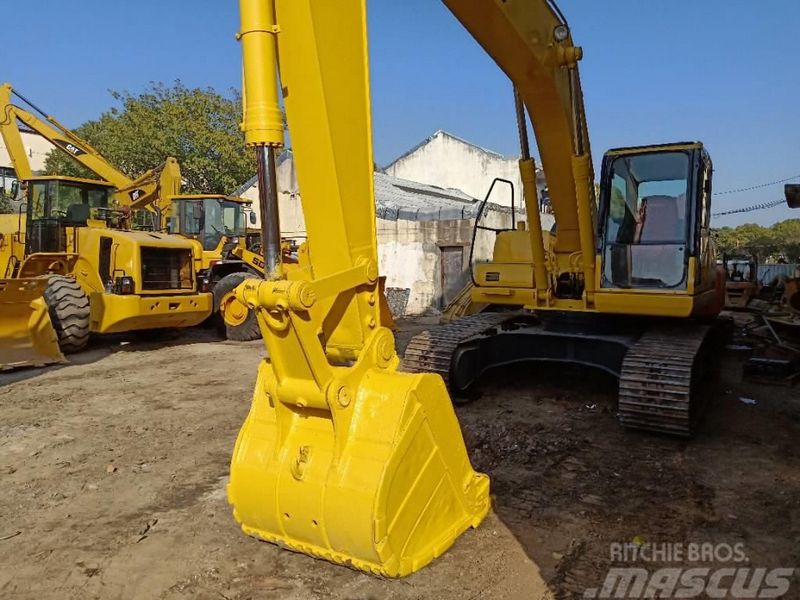

Komatsu PC220LC-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 15.59 ft in (4750 mm) |
| Max Digging Depth | 19.12 ft in (5825 mm) |
| Max Digging Reach | 30.42 ft in (9270 mm) |
| Boom/Stick Option (Hex) 1 | Arm -2000 mm, 6.7 ft in |
| Arm Crowd Force-Iso | 36194.24 lb (161 kN) |
| Bucket Digging Force - Iso | 44287.36 lb (197 kN) |
| Bucket Digging Force - Sae | 39566.38 lb (176 kN) |
| Minimum Swing Radius | 129.93 in (3300 mm) |
| Max.Dumping Height | 22.04 ft in (6715 mm) |
| Max Digging Height | 31.71 ft in (9665 mm) |
| Arm Crowd Force - Sae | 34845.39 lb (155 kN) |
| Max Digging Reach On Ground | 29.76 ft in (9070 mm) |
Boom/Stick Option (Hex) 2
| Max Reach Along Ground | 31.11 ft in (9480 mm) |
| Max Vertical Wall Digging Depth | 16.84 ft in (5130 mm) |
| Max Digging Depth | 20.74 ft in (6320 mm) |
| Max.Dumping Height | 22.51 ft in (6860 mm) |
| Arm Crowd Force-Sae | 31922.87 lb (142 kN) |
| Arm Crowd Force-Iso | 33271.73 lb (148 kN) |
| Bucket Digging Force - Sae | 34170.96 lb (152 kN) |
| Minimum Swing Radius | 130.71 in (3320 mm) |
| Bucket Digging Force - Iso | 38667.14 lb (172 kN) |
| Max Digging Reach | 31.73 ft in (9670 mm) |
| Boom/Stick Option (Hex) 2 | Arm - 2500 mm, 8.2 ft in |
| Max. Digging Height | 32.12 ft in (9790 mm) |
Boom/Stick Option (Hex) 3
| Max Reach Along Ground | 32.88 ft in (10020 mm) |
| Max Vertical Wall Digging Depth | 19.72 ft in (6010 mm) |
| Max Digging Depth | 22.71 ft in (6920 mm) |
| Bucket Digging Force - Sae | 34170.96 lb (152 kN) |
| Arm Crowd Force-Sae | 26752.27 lb (119 kN) |
| Boom/Stick Option (Hex) 3 | Arm - 3045 mm, 10.0 ft in |
| Bucket Digging Force - Iso | 38667.14 lb (172 kN) |
| Arm Crowd Force-Iso | 29000.36 lb (129 kN) |
| Max Digging Reach | 33.4 ft in (10180 mm) |
| Max. Digging Height | 32.81 ft in (10000 mm) |
| Max.Dumping Height | 23.09 ft in (7035 mm) |
| Minimum Swing Radius | 135.83 in (3450 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.9 ft in (3015 mm) |
| Width To Outside Of Tracks | 10.77 ft in (3280 mm) |
| Length Of Track On Ground | 12.62 ft in (3845 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Track Gauge | 8.47 ft in (2580 mm) |
| Track Length | 182.68 in (4640 mm) |
| Overall Height (To Top Of Boom) | 10.82 ft in (3295 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 6.97 psi (48.06 kPa) |
| Drawbar Pull | 45411.41 lb (202 kN) |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 10 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D102E-2 |
| Net Power | 167.7 hp (125 kw) |
| Gross Power | 167.7 hp (125 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Turbocharged |
| Displacement | 358.9 cu in (5.9 L) |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.8 in (120 mm) |
Capacities
| Hydraulic Oil Tank | 37.8 gal (143 L) |
| Swing Drive | 1.8 gal (6.6 L) |
| Fuel Tank | 105.7 gal (400 L) |
| Final Drive | 1.2 gal (4.5 L) |
| Engine Oil | 6.4 gal (24 L) |
| Coolant | 8.2 gal (30.9 L) |
Operational
| Operating Weight | 52888.9 lb (23990 kg) |
| Hydraulic Pump Flow Capacity | 116 gal/min (439 L/min) |
Swing Mechanism
| Swing Speed | 11.7 rpm |
