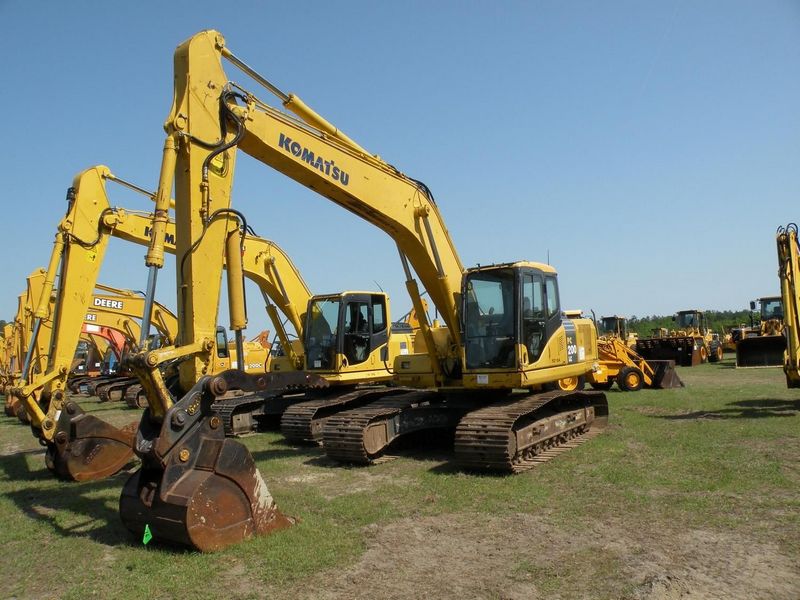

Komatsu PC200LC-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 17.82 ft in (5430 mm) |
| Max Digging Depth | 20 ft in (6095 mm) |
| Max Digging Height | 32.16 ft in (9800 mm) |
| Arm Crowd Force-Iso | 28550.74 lb (127 kN) |
| Arm Crowd Force - Sae | 27876.31 lb (124 kN) |
| Boom/Stick Option (Hex) 1 | Arm - 2410 mm, 7.11 ft in |
| Minimum Swing Radius | 121.66 in (3090 mm) |
| Maximum Vertical Wallcut Depth | 17.82 ft in (5430 mm) |
| Max.Dumping Height | 22.61 ft in (6890 mm) |
| Max Digging Reach On Ground | 30.16 ft in (9190 mm) |
| Max Digging Reach | 30.78 ft in (9380 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Arm Crowd Force-Iso | 24279.37 lb (108 kN) |
| Arm Crowd Force-Sae | 22705.71 lb (101 kN) |
| Boom/Stick Option (Hex) 2 | Arm - 2925 mm, 9.7 ft in |
| Bucket Digging Force - Iso | 33496.53 lb (149 kN) |
| Bucket Digging Force - Sae | 31023.64 lb (138 kN) |
| Max Digging Reach | 32.4 ft in (9875 mm) |
| Max Digging Reach On Ground | 31.83 ft in (9700 mm) |
| Max. Digging Height | 32.81 ft in (10000 mm) |
| Max.Dumping Height | 23.33 ft in (7110 mm) |
| Minimum Swing Radius | 119.69 in (3040 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Width To Outside Of Tracks | 10.44 ft in (3180 mm) |
| Length Of Track On Ground | 11.95 ft in (3640 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Track Gauge | 7.81 ft in (2380 mm) |
| Overall Height (To Top Of Boom) | 10.47 ft in (3190 mm) |
| Overall Length | 31.16 ft in (9495 mm) |
| Length On Ground (Transport) | 19.31 ft in (5885 mm) |
| Shoe Width | 2.63 ft in (800 mm) |
| Cab Width | 8.11 ft in (2.48 m) |
| Cab Height | 82.49 in (2095 mm) |
| Track Length | 175.2 in (4450 mm) |
Undercarriage
| Shoe Size | 27.56 in (700 mm) |
| Number Of Shoes Per Side | 49 |
| Ground Pressure | 5.26 psi (36.27 kPa) |
| Drawbar Pull | 40015.99 lb (178 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D102E-2 |
| Net Power | 143 hp (106.7 kw) |
| Gross Power | 150 hp (111.9 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | Turbocharged |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.8 in (120 mm) |
Capacities
| Hydraulic Oil Tank | 37.8 gal (143 L) |
| Swing Drive | 1.8 gal (6.6 L) |
| Fuel Tank | 105.7 gal (400 L) |
| Final Drive | 1.2 gal (4.5 L) |
| Engine Oil | 6.4 gal (24 L) |
| Coolant | 6 gal (22.4 L) |
Operational
| Operating Weight | 45635.7 lb (20700 kg) |
| Max Speed | 3.4 mph (5.5 km/h) |
| Hydraulic Pump Flow Capacity | 113 gal/min (427.8 L/min) |
Swing Mechanism
| Swing Brake | Hydraulic lock |
| Swing Speed | 12.4 rpm |
| Swing Torque | 48124 lb ft (65247.4 Nm) |
