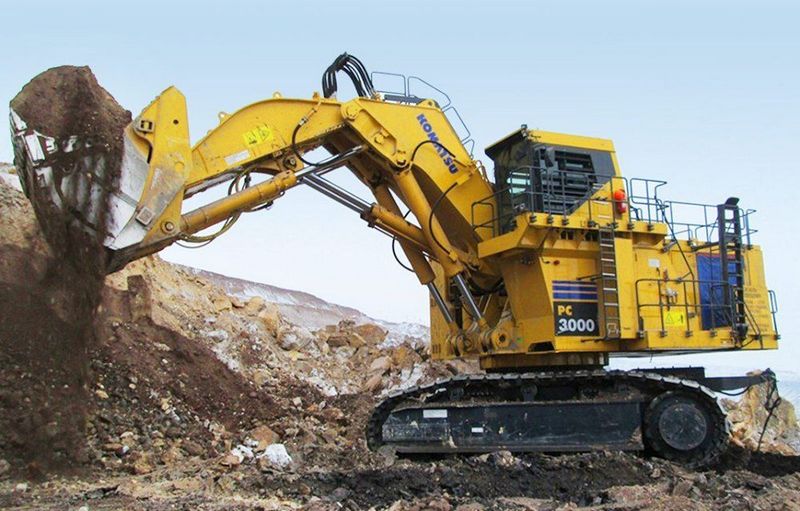

Komatsu PC3000-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 3.02 ft in (920 mm) |
| Track Length On Ground | 19.69 ft in (6000 mm) |
| Overall Track Width | 20.62 ft in (6283 mm) |
Undercarriage
| Shoe Size | 31.5 in (800 mm) |
| Number Of Track Shoes Per Side | 46 |
| Number Of Bottom Rollers Per Side | 7 |
| Track Adjustment | Automatic hydraulic type |
| Number Of Top Rollers Per Side | 3 |
Engine
| Horsepower, Net-Iso 9249 | 1260.6 hp (940 kw) |
| Horsepower, Net-Sae J1349 | 1260.6 hp (940 kw) |
| Number Of Cylinders | 12 |
| Engine Model | Komatsu SSA12V159 |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged and aftercooled |
| Displacement | 2319 cu in (38 L) |
| Shovel Capacity | 16 m3 21 yd3 SAE 2:1 heaped |
| Backhoe Capacity | 15 m3 19.5 yd3 SAE 1:1 heaped |
Driveline
| Travel Speeds | 1.5 mph (2.4 km/h) |
| Gradeability (%) | 57 |
Capacities
| Fuel Tank | 1188.8 gal (4500 L) |
| Hydraulic Tank | 705.4 gal (2670 L) |
| Hydraulic System | 1162.4 gal (4400 L) |
| Engine Oil | 50.2 gal (190 L) |
| Engine Coolant | 67.1 gal (254 L) |
Operational
| Arm Crowd Force – Iso | 86676 kgf |
| Bucket Size – Kga Standard Gp | 19.7 yd3 (15 m3) |
| Bucket Crowd Force – Iso | 81577 kgf |
| Maximum Reach @ Ground Level | 51.2 ft in (15600 mm) |
| Digging Depth – Maximum | 26 ft in (7900 mm) |
Weights
| Total Operating Weight | 584000.1 lb (264898 kg) |
Hydraulic System
| Main Pump Type | 3 x Axial piston Pumps |
| Maximum Flow Rate | 721.2 gal/min (2730 L/min) |
