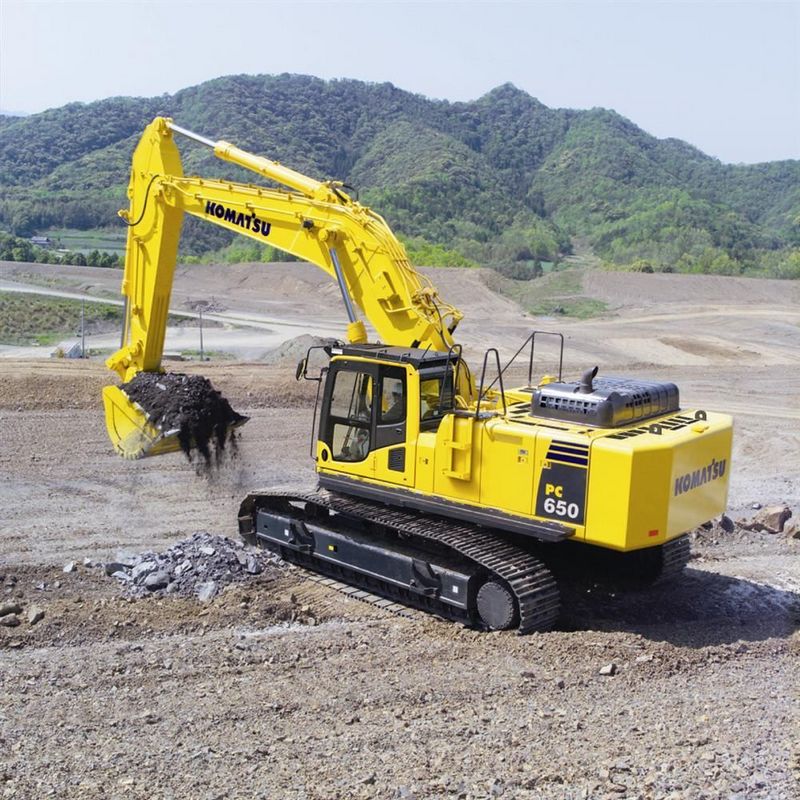

Komatsu PC650LC-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 2.59 ft in (788 mm) |
| Height To Top Of Cab | 10.8 ft in (3290 mm) |
| Width To Outside Of Tracks | 11.46 ft in (3490 mm) |
| Length Of Track On Ground | 18.67 ft in (5690 mm) |
| Tail Swing Radius | 12.96 ft in (3950 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 3 |
| Max Travel Speed | 3 mph (4.83 km/h) |
| Drawbar Pull | 93250 lb (414.8 kN) |
| Number Of Shoes Per Side | 52 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Net Power | 429 hp (320 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 146390 lb (66401.4 kg) |
| Fuel Capacity | 232.5 gal (880.2 L) |
| Cooling System Fluid Capacity | 15.3 gal (58 L) |
| Hydraulic System Fluid Capacity | 95 gal (359.7 L) |
| Engine Oil Capacity | 10.6 gal (40.2 L) |
| Swing Drive Fluid Capacity | 6.8 gal (25.8 L) |
Swing Mechanism
| Swing Speed | 8.3 rpm |
| Swing Torque | 154481 lb ft (209448.2 Nm) |
