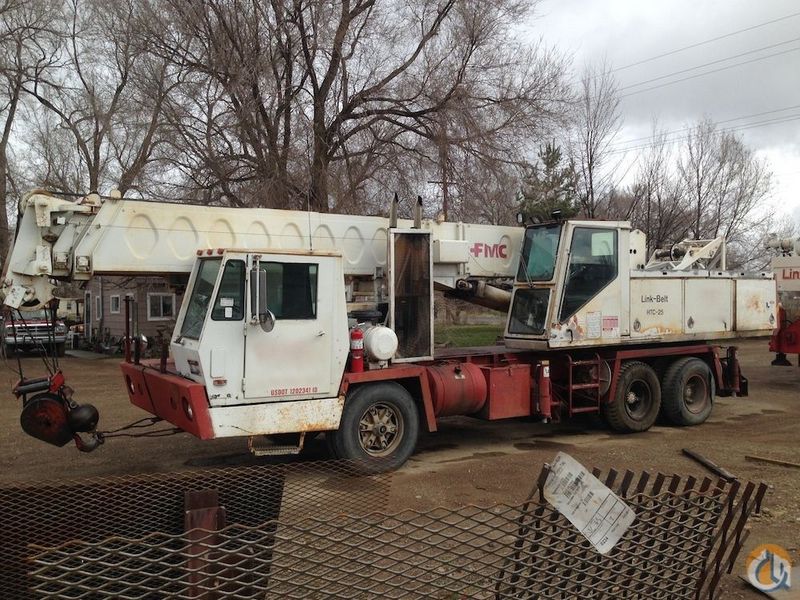

Link-Belt HTC25
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Swing Speed | 3.5 rpm |
Dimensions
| Transport Length | 33.99 ft in (10360 mm) |
| Transport Width | 7.98 ft in (2430 mm) |
| Transport Height | 9.75 ft in (2970 mm) |
| Ground Clearance | 0.89 ft in (270 mm) |
| Width W/ Outriggers Extended | 17 ft in (5180 mm) |
| Carrier Length | 29.6 ft in (9020 mm) |
| Upper Structure Tail Swing Radius | 10.63 ft in (3240 mm) |
Carrier Engine
| Stroke | 4.5 in (114.3 mm) |
| Bore | 3.9 in (98.5 mm) |
| Make | Link-Belt |
| Model | 6V53 |
| Gross Power | 216 hp (161.1 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 440 lb ft (596.6 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 318 cu in (5.3 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 45624.7 lb (20695 kg) |
| Carrier Fuel Capacity | 60 gal (227.2 L) |
| Upper Structure Hydraulic System Fluid Capacity | 160 gal (605.7 L) |
| Carrier Hydraulic System Fluid Capacity | 91 gal (344.5 L) |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | Eaton Roadranger RT613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 53.8 mph (86.6 km/h) |
| Max Speed - Reverse | 19.5 mph (31.3 km/h) |
