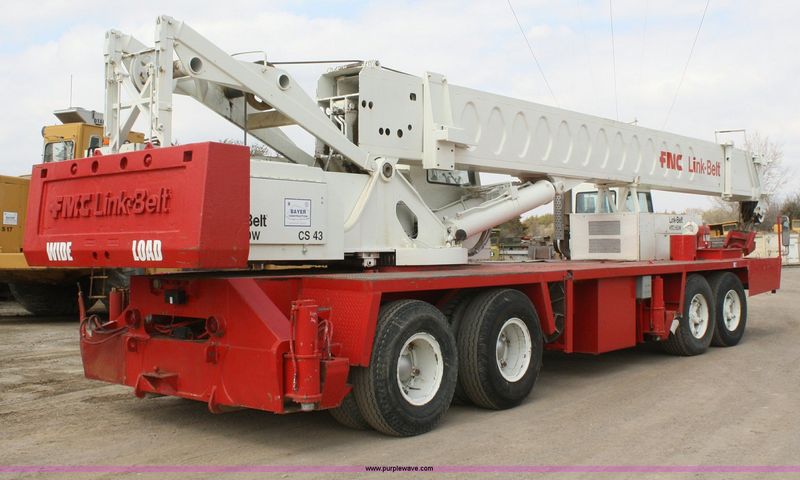

Link-Belt HTC-50W
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.01 ft in (10.67 m) |
| Max Height @ Max Raise Angle - No Jib | 90 ft in (27.43 m) |
| Max Elevating Angle | 75 degrees |
| Number Of Sections | 3 |
| Swing Speed | 2.7 rpm |
Dimensions
| Transport Length | 43.41 ft in (13230 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 10.77 ft in (3280 mm) |
| Ground Clearance | 0.79 ft in (240 mm) |
| Width W/ Outriggers Extended | 23.56 ft in (7180 mm) |
| Carrier Length | 35.18 ft in (10720 mm) |
| Upper Structure Tail Swing Radius | 11.65 ft in (3550 mm) |
Carrier Engine
| Stroke | 5.2 in (130 mm) |
| Bore | 4.4 in (110 mm) |
| Make | Link-Belt |
| Model | 6-71N |
| Gross Power | 238 hp (177.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 635 lb ft (861 Nm) |
| Displacement | 426 cu in (7 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 66683.3 lb (30247 kg) |
| Carrier Fuel Capacity | 92 gal (348.3 L) |
| Upper Structure Hydraulic System Fluid Capacity | 267 gal (1010.8 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | Front - 16.50 x 22.5, Rear - 12.00 x 20 |
Transmission
| Transmission Type | Fuller Roadranger RTO-613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 45.9 mph (73.9 km/h) |
