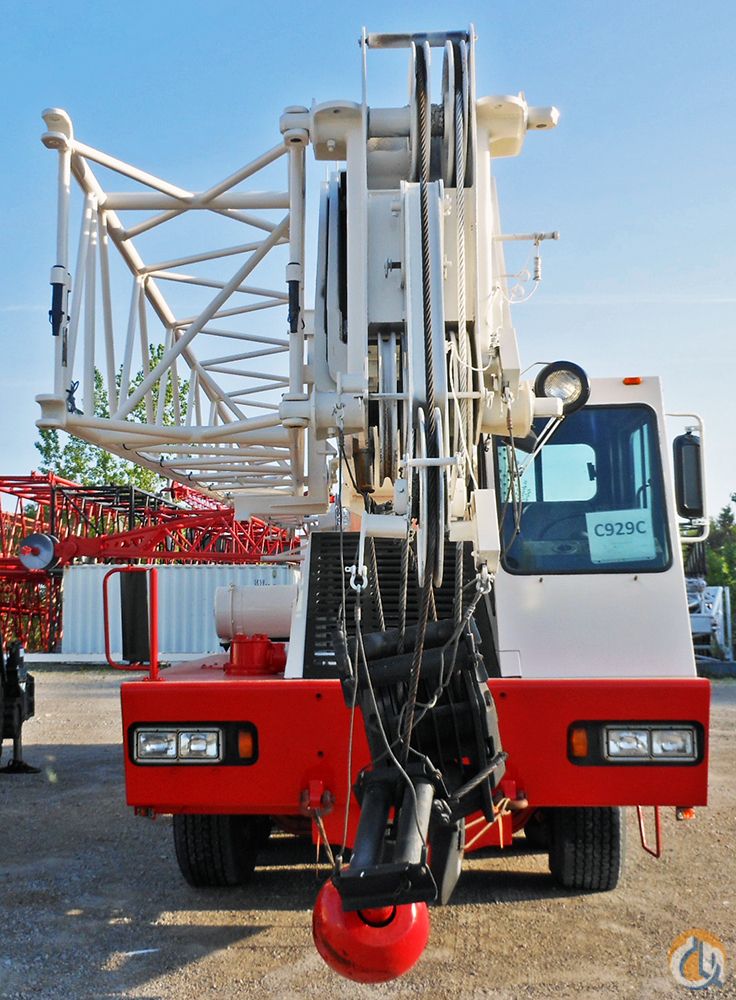

Link-Belt HTC-840
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.01 ft in (10.67 m) |
| Max Height @ Max Raise Angle - No Jib | 85.01 ft in (25.91 m) |
| Max Elevating Angle | 78 degrees |
| Number Of Sections | 3 |
| Swing Speed | 2.46 rpm |
Dimensions
| Transport Length | 45.77 ft in (13950 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 11 ft in (3350 mm) |
| Ground Clearance | 0.73 ft in (220 mm) |
| Width W/ Outriggers Extended | 22.02 ft in (6710 mm) |
| Carrier Length | 36.46 ft in (11110 mm) |
| Upper Structure Tail Swing Radius | 13.72 ft in (4180 mm) |
Carrier Engine
| Stroke | 5.6 in (140 mm) |
| Bore | 4.4 in (110 mm) |
| Make | Link-Belt |
| Model | 6CTA 8.3 |
| Gross Power | 234 hp (174.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 640 lb ft (867.8 Nm) |
| Displacement | 504.5 cu in (8.3 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 62099.9 lb (28168 kg) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 145 gal (548.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | Front - 15.0 x 22.5 (16 PR), Rear - 11.0 x 20.0 (14 PR) |
Transmission
| Transmission Type | Fuller Roadranger |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 50.5 mph (81.2 km/h) |
