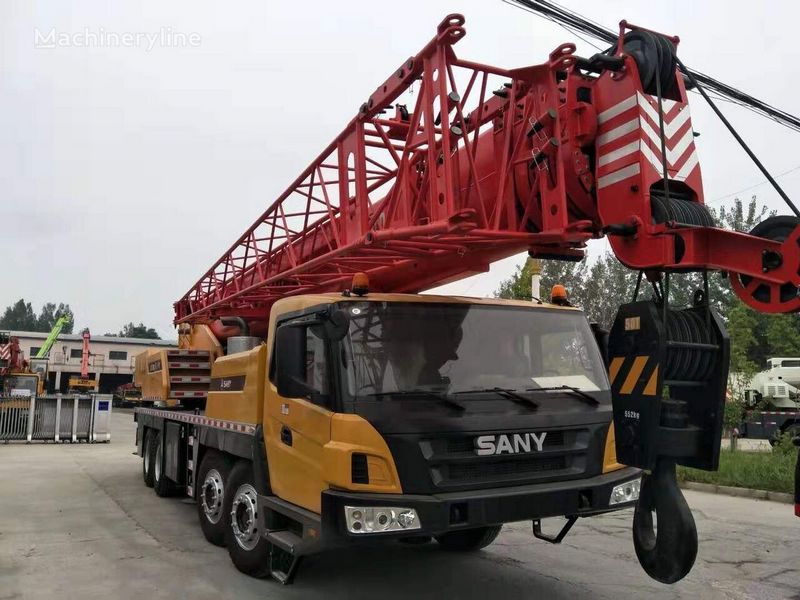

Sany STC500S
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.73 ft in (11.5 m) |
| Max Height @ Max Raise Angle - No Jib | 141.08 ft in (43 m) |
| Max Lift Capacity | 99999.92 lb (45359.2 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 45.12 ft in (13750 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Ground Clearance | 0.97 ft in (295 mm) |
| Gradeability | 40 % |
| Approach Angle | 18 degrees |
| Angle Of Departure | 12 degrees |
Carrier Engine
| Gross Power | 335.3 hp (250 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1051.1 lb ft (1425 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 92594.2 lb (42000 kg) |
| Number Of Axels | 4 |
Transmission
| Max Speed - Forward | 52.9 mph (85 km/h) |
