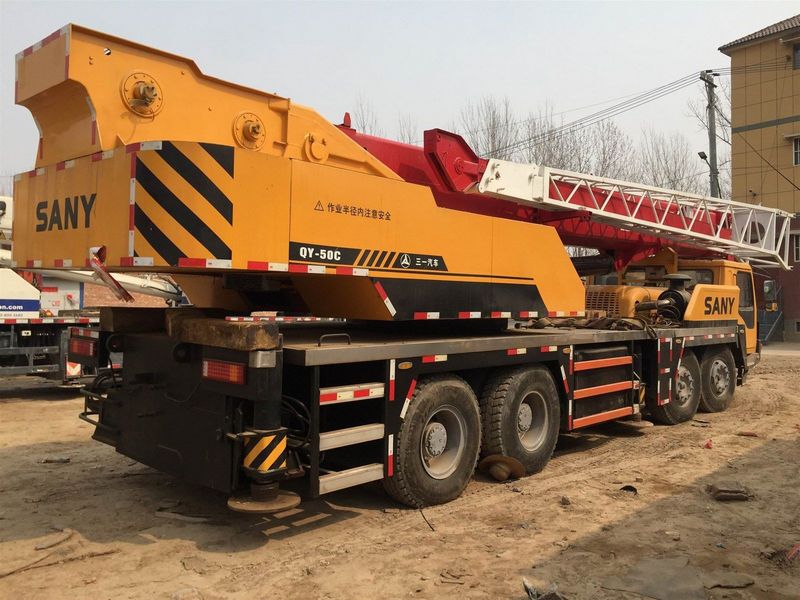

Sany QY50C
Browse All Sany or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.73 ft in (11.5 m) |
| Max Height @ Max Raise Angle - No Jib | 139.44 ft in (42.5 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Swing Speed | 2.4 rpm |
Dimensions
| Transport Length | 45.12 ft in (13750 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Ground Clearance | 1.13 ft in (342 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier Length | 38.1 ft in (11612 mm) |
| Upper Structure Tail Swing Radius | 13.16 ft in (4009 mm) |
Carrier Engine
| Make | Sany |
| Model | Dongfeng Cummins ISLe310 30 |
| Gross Power | 305.8 hp (228 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 885.1 lb ft (1200 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Tire Size | 12.00R20-20PR |
Transmission
| Max Speed - Forward | 47.3 mph (76 km/h) |
