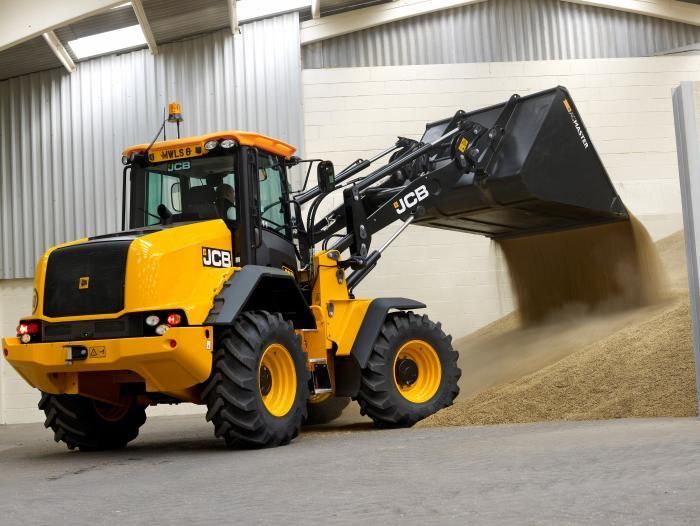

JCB 411BHT
Browse All JCB or Integrated Tool Carrier Models
Contents:
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004-4TLR2 |
| Gross Power | 90 hp (67.2 kw) |
| Net Power | 80 hp (59.7 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 239.8 lb ft (325 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 243.5 cu in (4 L) |
| Aspiration | turbocharged |
Operational
| Rear Axle Oscillation | 25 degrees |
Transmission
| Transmission Type | semi automatic full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 24.3 mph (39 km/h) |
| Max Speed Reverse | 10.1 mph (16.2 km/h) |
Hydraulic System
| Pump Type | double gear pump with automatic unloader |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 13.4 gal/min (50.6 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
