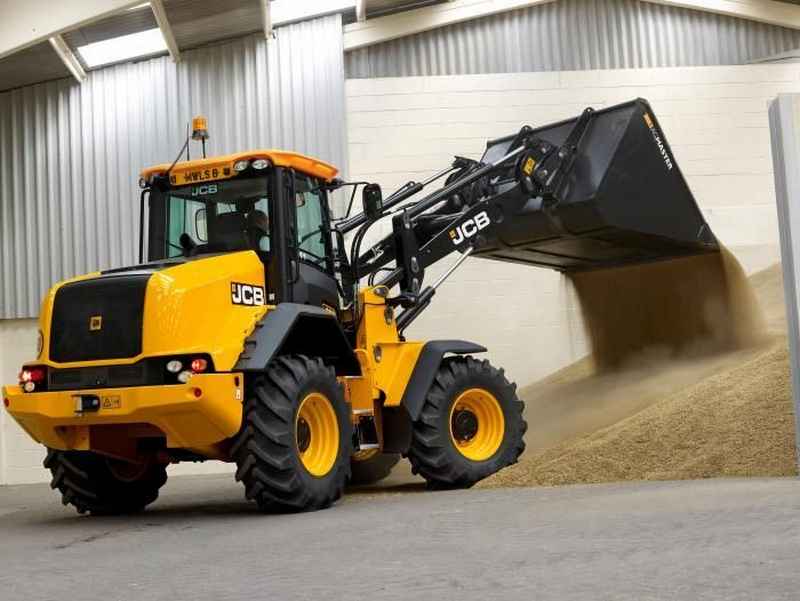

JCB 411BHT
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.61 ft in (2624 mm) |
| Bucket Capacity - Heaped | 1.57 yd3 (1.2 m3) |
| Bucket Capacity - Struck | 1.32 yd3 (1.01 m3) |
| Bucket Width | 7.39 ft in (2250 mm) |
| Breakout Force | 16456.02 lb (73.2 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Length With Bucket On Ground | 19.53 ft in (5952 mm) |
| Width Over Tires | 7.23 ft in (2203 mm) |
| Height To Top Of Cab | 9.89 ft in (3013 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Hinge Pin - Max Height | 11.45 ft in (3487 mm) |
| Reach At Max Lift And Dump | 3.04 ft in (925 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004-4TLR2 |
| Net Power | 80 hp (59.7 kw) |
| Gross Power | 90 hp (67.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 239.8 lb ft (325 Nm) |
| Displacement | 243.5 cu in (4 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 33.1 gal (125 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.5 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Front Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Static Tipping Weight | 11834.5 lb (5368 kg) |
| Turning Radius | 16.9 ft in (5150 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 72 amps |
| Rear Axle Oscillation | 25 degrees |
| Tire Size | 15.5x25x12 SGL |
Transmission
| Transmission Type | semi automatic full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic System
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 13.4 gal/min (50.6 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | double gear pump with automatic unloader |
