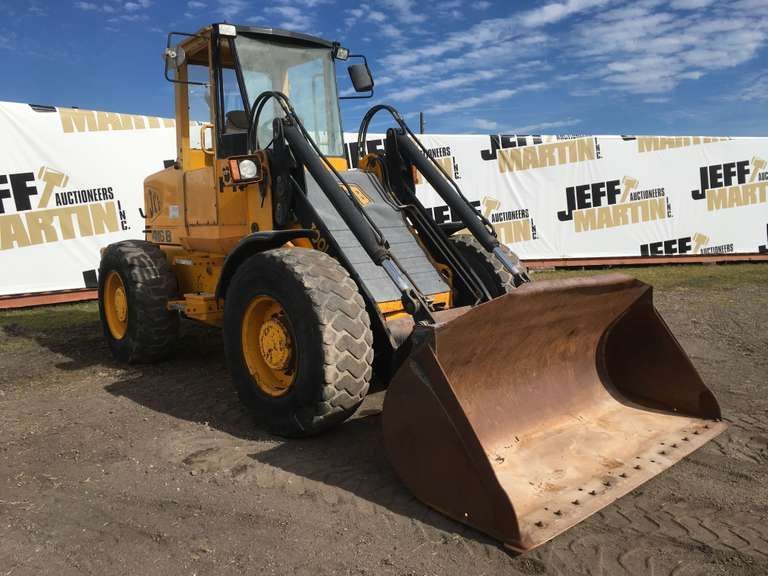

JCB 416BHT
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.96 ft in (2728 mm) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.55 yd3 (1.18 m3) |
| Bucket Width | 7.88 ft in (2400 mm) |
| Breakout Force | 22570.82 lb (100.4 kN) |
Dimensions
| Ground Clearance | 1.47 ft in (448 mm) |
| Length With Bucket On Ground | 19.9 ft in (6064 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 9.97 ft in (3037 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Hinge Pin - Max Height | 11.92 ft in (3633 mm) |
| Reach At Max Lift And Dump | 3.09 ft in (940 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004-40TW |
| Net Power | 108 hp (80.6 kw) |
| Gross Power | 114 hp (85.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 323.8 lb ft (439 Nm) |
| Displacement | 243.5 cu in (4 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 19356.6 lb (8780 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.5 L) |
| Transmission Fluid Capacity | 5.1 gal (19 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Static Tipping Weight | 13995 lb (6348 kg) |
| Turning Radius | 17.5 ft in (5325 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 72 amps |
| Rear Axle Oscillation | 25 degrees |
| Tire Size | 17.5x25x12SGL |
Transmission
| Transmission Type | 4 wheel drive, semi automatic full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 41.3 gal/min (156 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | piston pump, variable displacement, load sensing system |
