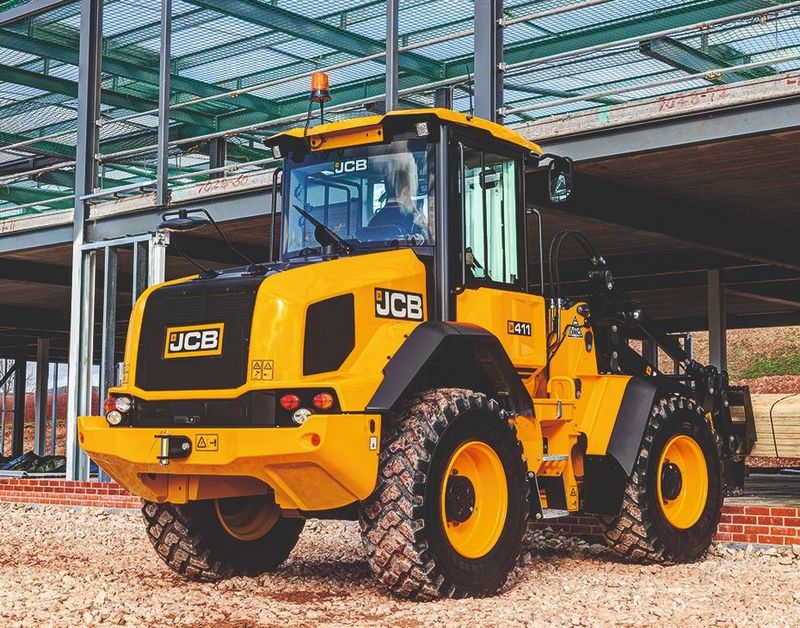

JCB 411HT
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 19.62 ft in (5978 mm) |
| Width Over Tires | 7.25 ft in (2209.8 mm) |
| Height To Top Of Cab | 10.08 ft in (3072.39 mm) |
| Wheelbase | 8.86 ft in (2700 m) |
| Ground Clearance | 1.33 ft in (405.39 mm) |
| Hinge Pin Max Height | 11.45 ft in (3487 mm) |
| Dump Clearance At Max Lift | 8.61 ft in (2624 mm) |
| Max Lift Height | 10.9 ft in (3320 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Reach At Max Height And Dump | 3.04 ft in (925 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | Dieselmax |
| Gross Power | 100 hp (74.6 kw) |
| Net Power | 92.8 hp (69.3 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 313 lb ft (424.4 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 269 cu in (4.5 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 18636 lb (8453.2 kg) |
| Fuel Capacity | 33 gal (125 L) |
| Cooling System Fluid Capacity | 6 gal (22.8 L) |
| Engine Oil Capacity | 3 gal (11.4 L) |
| Transmission Fluid Capacity | 7.1 gal (26.9 L) |
| Front Diff Fluid Capacity | 6.6 gal (25 L) |
| Rear Diff Fluid Capacity | 6.6 gal (25 L) |
| Hydraulic System Fluid Capacity | 29 gal (109.8 L) |
| Turning Radius | 17.8 ft in (5410.2 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 12.5 degrees |
| Static Tipping Load - Bucket | 13574 lb (6157.1 kg) |
| Static Tipping Load - Forks | 9533 lb (4324.1 kg) |
| Tire Size | 15.5R25 XHA (L3) |
Transmission
| Transmission Type | Smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 23.3 mph (37.5 km/h) |
| Max Speed Reverse | 17.1 mph (27.6 km/h) |
Hydraulic System
| Pump Type | Double gear pump |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 103.1 gal/min (390 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.7 sec |
Bucket
| Breakout Force | 16456.1 lb (73.2 kN) |
| Bucket Capacity - Heaped | 1.6 yd3 (1.3 m3) |
| Bucket Capacity - Struck | 1.4 yd3 (1.1 m3) |
