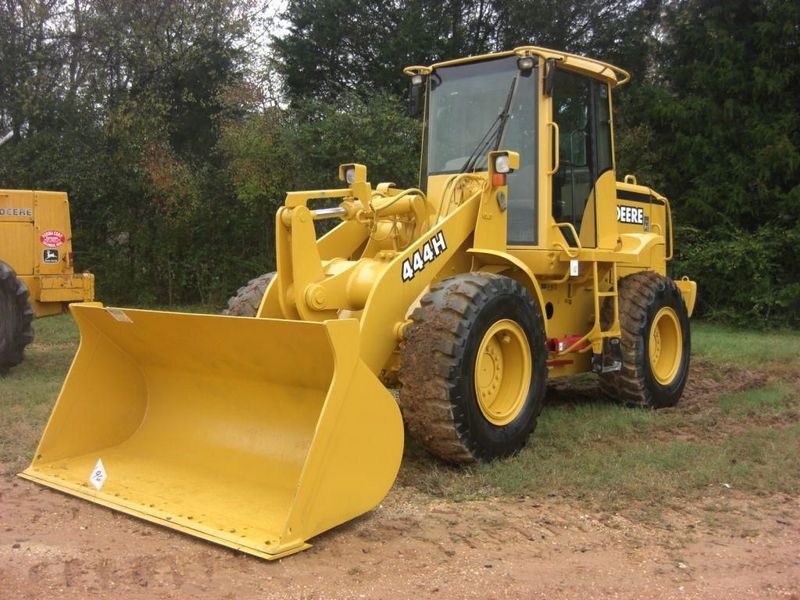

John Deere 444H
Browse All John Deere or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 22.09 ft in (6730 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 10.26 ft in (3125 mm) |
| Wheelbase | 9.03 ft in (2750 m) |
| Ground Clearance | 1.17 ft in (355 mm) |
| Hinge Pin Max Height | 11.83 ft in (3605 mm) |
| Dump Clearance At Max Lift | 8.66 ft in (2638 mm) |
| Max Lift Height | 11.18 ft in (3406 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Hook Height At Max Lift - Standard | 17.64 ft in (5375 mm) |
| Hook Height At Max Lift - Extended | 22.03 ft in (6714 mm) |
| Hook Reach At Max Lift - Standard | 7.15 ft in (2178 mm) |
| Hook Reach At Max Lift - Extended | 11.6 ft in (3534 mm) |
| Length With Out Forks On Ground | 18.98 ft in (5785 mm) |
| Reach At Max Height And Dump | 3.6 ft in (1095 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 115.4 hp (86 kw) |
| Net Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 325 lb ft (441 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 276 cu in (4.5 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 21457 lb (9733 kg) |
| Fuel Capacity | 48 gal (180 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Engine Oil Capacity | 3.4 gal (12.5 L) |
| Transmission Fluid Capacity | 3.4 gal (12.5 L) |
| Front Diff Fluid Capacity | 4 gal (15 L) |
| Rear Diff Fluid Capacity | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 28.1 gal (106 L) |
| Turning Radius | 15.5 ft in (4703 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Static Tipping Load - Bucket | 16021 lb (7267 kg) |
| Static Tipping Load - Forks | 9621 lb (4364 kg) |
| Static Tipping Load - Material Handler | 7145 lb (3241 kg) |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 24.8 mph (40 km/h) |
| Max Speed Reverse | 16.3 mph (26.3 km/h) |
Hydraulic System
| Pump Type | Piston Pump |
| Relief Valve Setting | 3600 psi (24850 kPa) |
| Pump Flow Capacity | 36 gal/min (136.3 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.1 sec |
| Lower Time | 2.6 sec |
Bucket
| Breakout Force | 16592 lb (73.9 kN) |
| Bucket Capacity - Heaped | 2.5 yd3 (2 m3) |
| Bucket Capacity - Struck | 2.1 yd3 (1.6 m3) |
