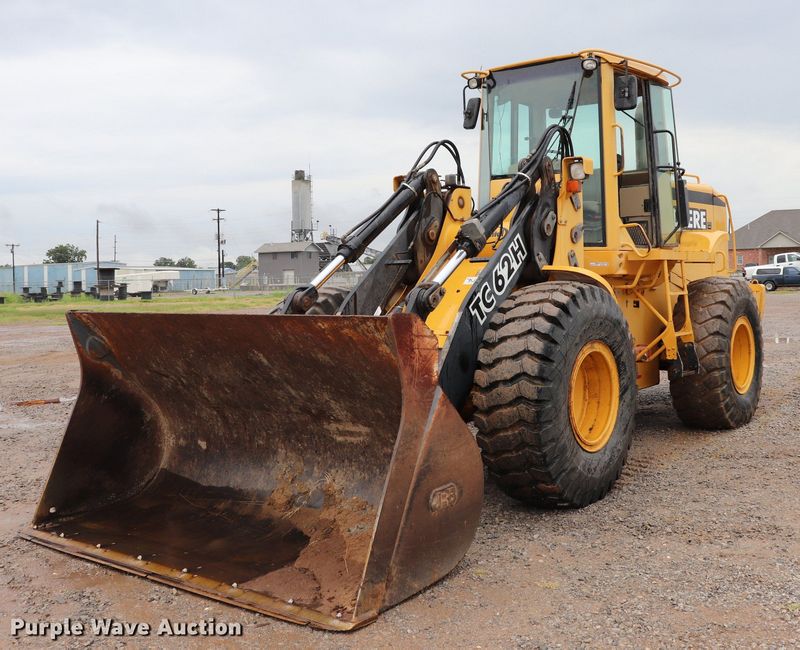

John Deere TC62H
Browse All John Deere or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 25.17 ft in (7671 mm) |
| Width Over Tires | 8.58 ft in (2615 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Wheelbase | 9.86 ft in (3003 m) |
| Ground Clearance | 1.34 ft in (406 mm) |
| Hinge Pin Max Height | 13.14 ft in (4005 mm) |
| Dump Clearance At Max Lift | 9.54 ft in (2907 mm) |
| Max Lift Height | 12.54 ft in (3821 mm) |
| Fork Tine Length | 4.01 ft in (1220 mm) |
| Hook Height At Max Lift - Standard | 18.8 ft in (5728 mm) |
| Hook Height At Max Lift - Extended | 23.08 ft in (7033 mm) |
| Hook Reach At Max Lift - Standard | 7.55 ft in (2299 mm) |
| Hook Reach At Max Lift - Extended | 12.1 ft in (3688 mm) |
| Hook Max Reach - Standard | 12.2 ft in (3716 mm) |
| Hook Max Reach - Extended | 18.45 ft in (5621 mm) |
| Height At Hook Max Reach | 6.67 ft in (2030 mm) |
| Length With Out Forks On Ground | 25.89 ft in (7889 mm) |
| Reach At Max Height And Dump | 4.2 ft in (1278 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Gross Power | 172 hp (128.3 kw) |
| Net Power | 160 hp (119 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 578 lb ft (785 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharger with Aftercooler |
Operational
| Operating Weight | 30532 lb (13849 kg) |
| Fuel Capacity | 70 gal (265 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Diff Fluid Capacity | 7.2 gal (27 L) |
| Rear Diff Fluid Capacity | 5.6 gal (21 L) |
| Hydraulic System Fluid Capacity | 31 gal (117 L) |
| Turning Radius | 17.1 ft in (5187 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 26 degrees |
| Static Tipping Load - Bucket | 21506 lb (9755 kg) |
| Static Tipping Load - Forks | 16636 lb (7546 kg) |
| Static Tipping Load - Material Handler | 11036 lb (5005.9 kg) |
| Tire Size | 20.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 24.5 mph (39.5 km/h) |
| Max Speed Reverse | 14.9 mph (23.9 km/h) |
Hydraulic System
| Pump Type | Piston Pump |
| Relief Valve Setting | 3600 psi (24850 kPa) |
| Pump Flow Capacity | 55 gal/min (208.2 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3 sec |
Bucket
| Breakout Force | 27091 lb (120.6 kN) |
| Bucket Capacity - Heaped | 3.5 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3 yd3 (2.3 m3) |
