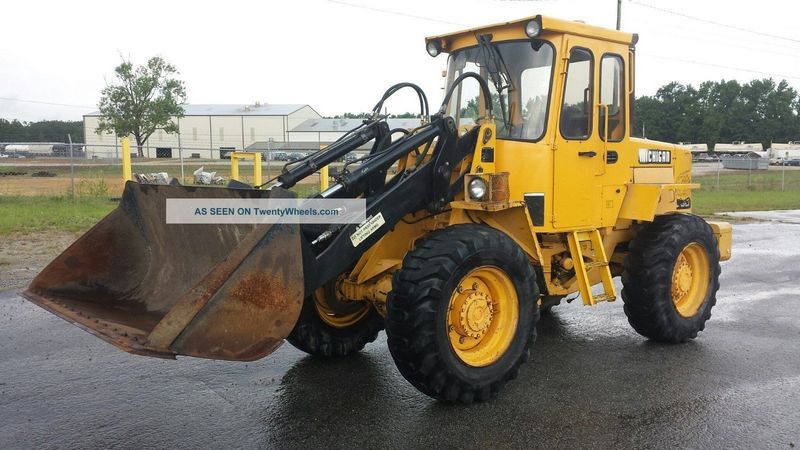

Michigan L30
Browse All Michigan or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 18.38 ft in (5600 mm) |
| Width Over Tires | 6.53 ft in (1990 mm) |
| Height To Top Of Cab | 9.13 ft in (2780 mm) |
| Wheelbase | 8.95 ft in (2725 m) |
| Ground Clearance | 1.38 ft in (420 mm) |
| Hinge Pin Max Height | 11.78 ft in (3590 mm) |
| Dump Clearance At Max Lift | 9.22 ft in (2810 mm) |
| Max Lift Height | 11.32 ft in (3450 mm) |
| Fork Tine Length | 3.45 ft in (1050 mm) |
| Hook Height At Max Lift - Standard | 19.02 ft in (5795 mm) |
| Hook Height At Max Lift - Extended | 22.04 ft in (6715 mm) |
| Hook Reach At Max Lift - Standard | 7.09 ft in (2160 mm) |
| Hook Reach At Max Lift - Extended | 9.26 ft in (2820 mm) |
| Hook Max Reach - Standard | 10.27 ft in (3130 mm) |
| Hook Max Reach - Extended | 17.48 ft in (5325 mm) |
| Height At Hook Max Reach | 4.88 ft in (1485 mm) |
| Length With Out Forks On Ground | 18.84 ft in (5740 mm) |
| Reach At Max Height And Dump | 2.5 ft in (760 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 4.236 |
| Gross Power | 74 hp (55.2 kw) |
| Net Power | 77 hp (57.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 203.6 lb ft (276 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 236 cu in (3.9 L) |
| Aspiration | direct injectio |
Operational
| Operating Weight | 13100 lb (5942.1 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Cooling System Fluid Capacity | 27.8 gal (105 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Transmission Fluid Capacity | 6.4 gal (24 L) |
| Front Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Diff Fluid Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 2.7 gal (10 L) |
| Turning Radius | 17 ft in (5162.5 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Rear Axle Oscillation | 20 degrees |
| Static Tipping Load - Bucket | 8135.1 lb (3690 kg) |
| Static Tipping Load - Forks | 9722.4 lb (4410 kg) |
| Static Tipping Load - Material Handler | 3157.1 lb (1432 kg) |
| Tire Size | 15.5-25 L-2 |
Transmission
| Transmission Type | Clark 18000 Series constant mesh automatic powershift transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed Forward | 21.9 mph (35.2 km/h) |
| Max Speed Reverse | 21.9 mph (35.2 km/h) |
Hydraulic System
| Pump Type | gear type |
| Relief Valve Setting | 2175 psi (14996.1 kPa) |
| Pump Flow Capacity | 27.2 gal/min (103 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.2 sec |
Bucket
| Breakout Force | 12320 lb (54.9 kN) |
Blade
| Width | 7 ft in (2130 mm) |
Bucket
| Bucket Capacity - Heaped | 0.8 yd3 (0.6 m3) |
| Bucket Capacity - Struck | 0.9 yd3 (0.7 m3) |
