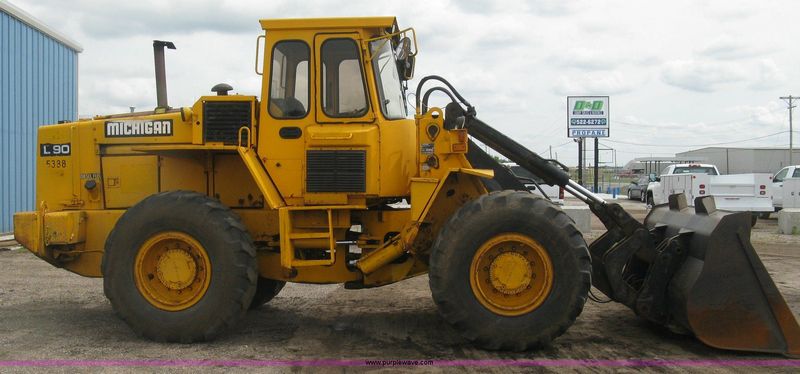

Michigan L90-I
Browse All Michigan or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 23.56 ft in (7180 mm) |
| Width Over Tires | 8.29 ft in (2525 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 9.85 ft in (3000 m) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Hinge Pin Max Height | 12.59 ft in (3835 mm) |
| Dump Clearance At Max Lift | 9.22 ft in (2810 mm) |
| Max Lift Height | 12.06 ft in (3675 mm) |
| Fork Tine Length | 4.02 ft in (1225 mm) |
| Hook Height At Max Lift - Standard | 20.17 ft in (6145 mm) |
| Hook Height At Max Lift - Extended | 23.28 ft in (7095 mm) |
| Hook Reach At Max Lift - Standard | 7.04 ft in (2145 mm) |
| Hook Reach At Max Lift - Extended | 9.06 ft in (2760 mm) |
| Hook Max Reach - Standard | 10.8 ft in (3290 mm) |
| Hook Max Reach - Extended | 17.9 ft in (5455 mm) |
| Height At Hook Max Reach | 5.27 ft in (1605 mm) |
| Reach At Max Height And Dump | 3.45 ft in (1050 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6 BT 5.9 |
| Gross Power | 145 hp (108.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 410.1 lb ft (556 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 27668.1 lb (12550 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 10.1 gal (38 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Transmission Fluid Capacity | 9.3 gal (35 L) |
| Front Diff Fluid Capacity | 7.3 gal (27.5 L) |
| Rear Diff Fluid Capacity | 7.3 gal (27.5 L) |
| Hydraulic System Fluid Capacity | 51 gal (193 L) |
| Turning Radius | 19.4 ft in (5910 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Rear Axle Oscillation | 30 degrees |
| Static Tipping Load - Bucket | 20481 lb (9290 kg) |
| Static Tipping Load - Forks | 11023.2 lb (5000 kg) |
| Tire Size | 20.5-25 |
Transmission
| Transmission Type | Clark C270 powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed Forward | 20.4 mph (32.8 km/h) |
| Max Speed Reverse | 20.4 mph (32.8 km/h) |
Hydraulic System
| Relief Valve Setting | 2970 psi (20477.5 kPa) |
| Raise Time | 6.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.5 sec |
Bucket
| Breakout Force | 26380 lb (119.9 kN) |
Blade
| Width | 8.7 ft in (2650 mm) |
Bucket
| Bucket Capacity - Heaped | 2.8 yd3 (2.1 m3) |
| Bucket Capacity - Struck | 2.3 yd3 (1.8 m3) |
