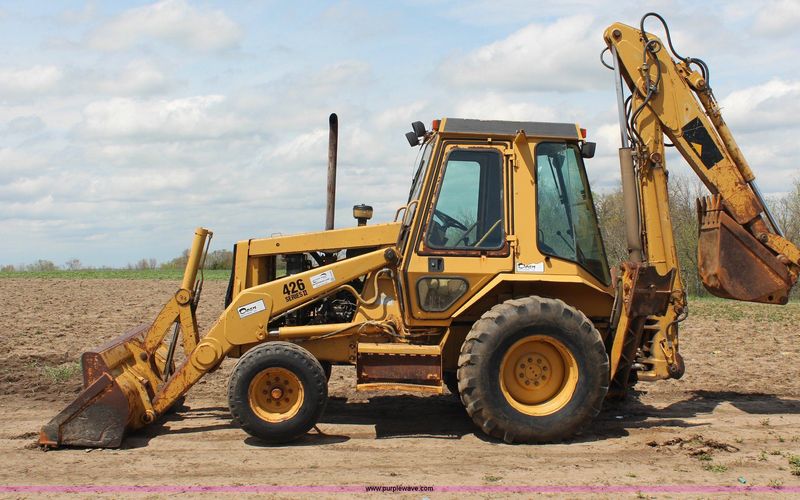

Caterpillar 426 Series II
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.97 ft in (3647 mm) |
| Reach From Swivel - Std | 18.97 ft in (5781 mm) |
| Dig Depth - Std | 15.39 ft in (4688 mm) |
| Reach At Load Height - Std | 7.33 ft in (2234 mm) |
| Load Height - Ext | 14.23 ft in (4335 mm) |
| Bucket Dig Force - Ext | 10260 lb (4653.86 kg) |
| Bucket Dig Force - Std | 10440 lb (4735.51 kg) |
| Dig Depth - Ext | 19.7 ft in (6004 mm) |
| Reach At Load Height - Ext | 11.24 ft in (3423 mm) |
| Load At Max Lift - Ext | 2314.86 lb (1050 kg) |
| Load At Max Lift - Std | 3869.12 lb (1755 kg) |
| Reach From Swivel - Ext | 23.12 ft in (7046 mm) |
Dimensions
| Transport Length | 22.7 ft in (6917 mm) |
| Transport Width | 7.43 ft in (2262 mm) |
| Transport Height | 12.28 ft in (3742 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 0.96 ft in (291 mm) |
| Height To Top Of Suspended Cab | 8.91 ft in (2714 mm) |
Loader
| Clearance At Max Dump Height | 8.41 ft in (2562 mm) |
| Reach At Max Dump Height | 2.55 ft in (776 mm) |
| Dig Depth | 4.02 in (102 mm) |
| Bucket Breakout Force | 7665.99 lb (34.1 kN) |
| Bucket Width | 89.06 in (2262 mm) |
| Bucket Capacity | 1.26 yd3 (0.96 m3) |
| Lift Capacity At Full Height | 5401.33 lb (2450 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 4.236 |
| Gross Power | 75 hp (56 kw) |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 235.6 cu in (3.9 L) |
Operational
| Operating Weight 2wd | 14623.3 lb (6633 kg) |
| Fuel Capacity | 28.1 gal (106 L) |
| Operating Weight 4wd | 14887.9 lb (6753 kg) |
| Hydraulic System Fluid Capacity | 21.7 gal (82 L) |
| Oil System Fluid Capacity | 1.9 gal (7 L) |
| Cooling System Fluid Capacity | 5.6 gal (21 L) |
| Transmission Fluid Capacity | 2.7 gal (10 L) |
| Front Axle Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle Fluid Capacity | 4.9 gal (18.5 L) |
| Turning Radius | 12.9 ft in (3905 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16, 12PR/10.5-20, 10PR |
| Rear Tires Size 2wd/4wd | 16.9-24 8PR / 19.5L-24 8PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 52 amps |
Transmission
| Transmission Type | Fully synchromesh |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.6 mph (31.5 km/h) |
| Max Speed Reverse | 19.7 mph (31.6 km/h) |
Hydraulic
| Pump Type | Variable |
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
| Relief Valve Pressure | 2700 psi (18600 kPa) |
