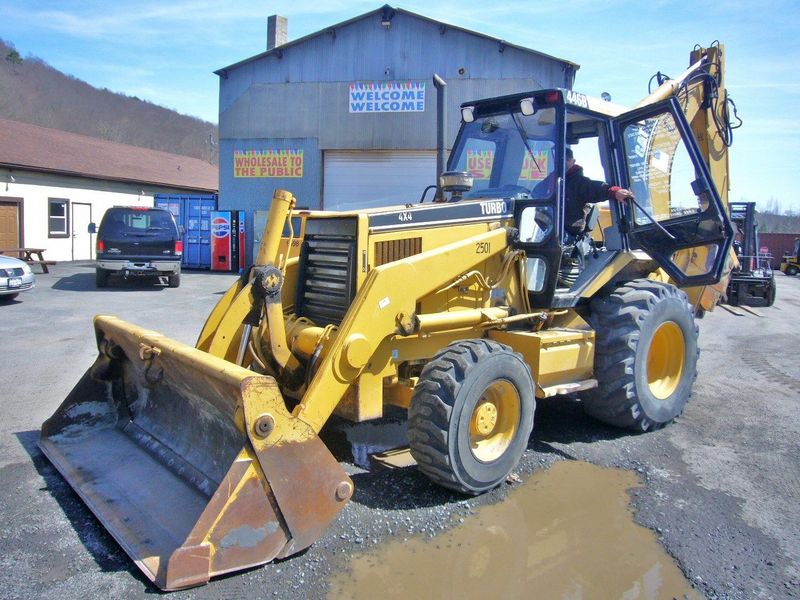

Caterpillar 446
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 14.15 ft in (4310 mm) |
| Reach From Swivel - Std | 21.67 ft in (6604 mm) |
| Dig Depth - Std | 17.13 ft in (5219 mm) |
| Reach At Load Height - Std | 6.66 ft in (2027 mm) |
| Load Height - Ext | 16.06 ft in (4894 mm) |
| Bucket Dig Force - Ext | 13523 lb (6133.93 kg) |
| Bucket Dig Force - Std | 13573 lb (6156.61 kg) |
| Dig Depth - Ext | 21.42 ft in (6528 mm) |
| Reach At Load Height - Ext | 10.7 ft in (3261 mm) |
| Load At Max Lift - Ext | 2270.77 lb (1030 kg) |
| Load At Max Lift - Std | 4931.75 lb (2237 kg) |
| Reach From Swivel - Ext | 25.82 ft in (7868 mm) |
Dimensions
| Transport Length | 26.1 ft in (7954 mm) |
| Transport Width | 7.98 ft in (2432 mm) |
| Transport Height | 13.76 ft in (4193 mm) |
| Wheelbase | 7.33 ft in (2233 mm) |
| Ground Clearance | 1.09 ft in (332 mm) |
| Height To Top Of Suspended Cab | 9.4 ft in (2864 mm) |
Loader
| Clearance At Max Dump Height | 8.86 ft in (2699 mm) |
| Reach At Max Dump Height | 2.85 ft in (868 mm) |
| Dig Depth | 6.38 in (162 mm) |
| Bucket Breakout Force | 12004.8 lb (53.4 kN) |
| Bucket Width | 95.75 in (2432 mm) |
| Bucket Capacity | 1.44 yd3 (1.11 m3) |
| Lift Capacity At Full Height | 8179.16 lb (3710 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3114 |
| Gross Power | 103 hp (76.9 kw) |
| Net Power | 95 hp (70.9 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | turbocharged |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight 2wd | 19603.6 lb (8892 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Operating Weight 4wd | 20035.7 lb (9088 kg) |
| Hydraulic System Fluid Capacity | 40.7 gal (154 L) |
| Oil System Fluid Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Transmission Fluid Capacity | 6.9 gal (26 L) |
| Front Axle Fluid Capacity | 2.5 gal (9.3 L) |
| Rear Axle Fluid Capacity | 8.2 gal (31 L) |
| Turning Radius | 13.8 ft in (4205 mm) |
| Tire Size Front - 2wd / 4wd | 14.5/75-16.1 10PR / 12.5-20 10PR |
| Rear Tires Size 2wd/4wd | 21L-24 12PR / 21L-24 12PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.6 mph (33 km/h) |
| Max Speed Reverse | 22.7 mph (36.5 km/h) |
Hydraulic
| Pump Type | Variable-flow |
| Pump Flow Capacity | 42.8 gal/min (162 L/min) |
| Relief Valve Pressure | 2900 psi (19994.8 kPa) |
