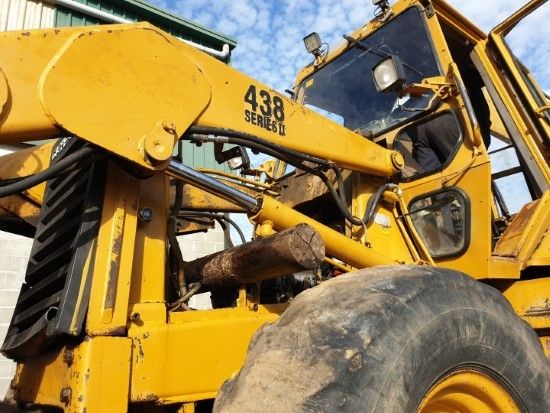

Caterpillar 438 Series II
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.35 ft in (3458 mm) |
| Reach From Swivel - Std | 18.39 ft in (5605 mm) |
| Dig Depth - Std | 15.79 ft in (4812 mm) |
| Bucket Dig Force - Std | 11008 lb (4993.15 kg) |
| Bucket Dig Force - Ext | 10820 lb (4907.87 kg) |
| Reach From Swivel - Ext | 22.47 ft in (6848 mm) |
| Load At Max Lift - Std | 3703.77 lb (1680 kg) |
| Load At Max Lift - Ext | 2127.47 lb (965 kg) |
| Dig Depth - Ext | 19.9 ft in (6063 mm) |
| Load Height - Ext | 13.7 ft in (4175 mm) |
Dimensions
| Transport Length | 18.69 ft in (5696 mm) |
| Transport Width | 7.9 ft in (2406 mm) |
| Transport Height | 11.81 ft in (3597 mm) |
| Wheelbase | 6.79 ft in (2067 mm) |
| Ground Clearance | 1.1 ft in (335 mm) |
| Height To Top Of Suspended Cab | 9.17 ft in (2795 mm) |
Loader
| Clearance At Max Dump Height | 8.69 ft in (2648 mm) |
| Reach At Max Dump Height | 2.81 ft in (855 mm) |
| Dig Depth | 3.75 in (95 mm) |
| Lift Capacity At Full Height | 5211.73 lb (2364 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 94.34 in (2396 mm) |
| Bucket Breakout Force | 8025.68 lb (35.71 kN) |
Engine
| Engine Make | 2351 |
| Engine Model | 4.236 |
| Net Power | 77 hp (57.5 kw) |
| Gross Power | 83 hp (61.9 kw) |
| Displacement | 235.6 cu in (3.9 L) |
Operational
| Operating Weight 2wd | 16234.9 lb (7364 kg) |
| Turning Radius | 12.9 ft in (3920 mm) |
| Tire Size Front - 2wd / 4wd | 12.5/80-18 10 PR |
| Rear Tires Size 2wd/4wd | 18.4/15-26 12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19 mph (30.5 km/h) |
| Max Speed Reverse | 19.1 mph (30.6 km/h) |
Hydraulic
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
| Relief Valve Pressure | 2697.8 psi (18600 kPa) |
