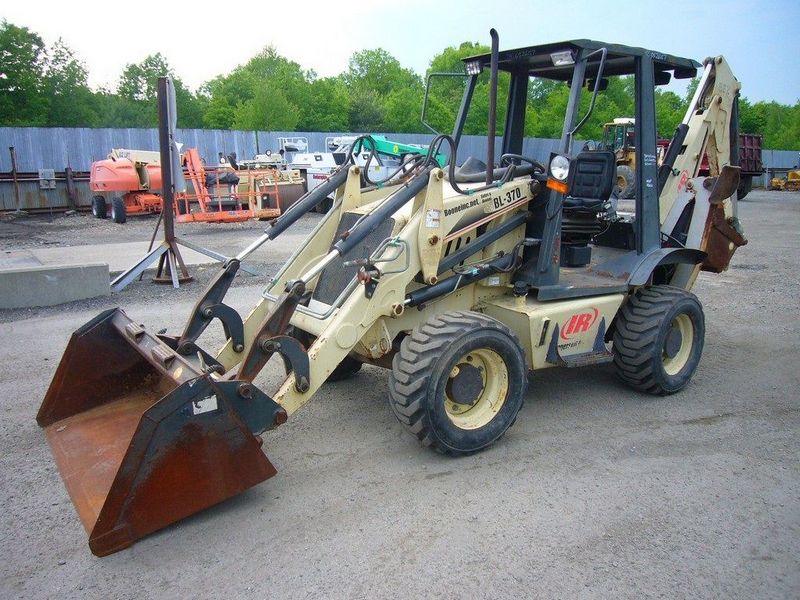

Ingersoll Rand BL370
Browse All Ingersoll Rand or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 9.18 ft in (2796 mm) |
| Reach From Swivel - Std | 13.9 ft in (4236 mm) |
| Dig Depth - Std | 11.05 ft in (3368 mm) |
| Bucket Dig Force - Std | 15037.74 lb (6821 kg) |
Dimensions
| Transport Length | 19.3 ft in (5880 mm) |
| Transport Width | 6.15 ft in (1873 mm) |
| Wheelbase | 5.97 ft in (1819 mm) |
| Height To Top Of Suspended Cab | 7.64 ft in (2326 mm) |
Loader
| Clearance At Max Dump Height | 6.71 ft in (2043 mm) |
| Reach At Max Dump Height | 1.37 ft in (416 mm) |
| Dig Depth | 2.76 in (70 mm) |
| Bucket Breakout Force | 1895139.41 lb (8430 kN) |
| Bucket Width | 73.75 in (1873 mm) |
| Bucket Capacity | 0.66 yd3 (0.5 m3) |
Engine
| Gross Power | 46 hp (34.4 kw) |
Operational
| Fuel Capacity | 25.1 gal (95 L) |
| Operating Weight 4wd | 9259.5 lb (4200 kg) |
| Turning Radius | 14.7 ft in (4471 mm) |
| Tire Size Front - 2wd / 4wd | 12x16.5 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 10.9 mph (17.5 km/h) |
