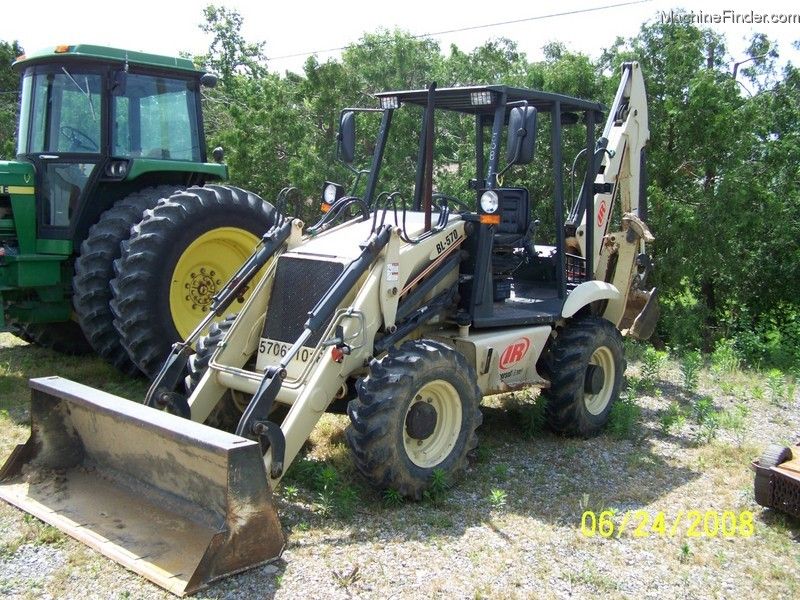

Ingersoll Rand BL570
Browse All Ingersoll Rand or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 10.4 ft in (3169 mm) |
| Reach From Swivel - Std | 15.15 ft in (4616 mm) |
| Dig Depth - Std | 10.41 ft in (3172 mm) |
| Bucket Dig Force - Std | 19191.25 lb (8705 kg) |
| Dig Depth - Ext | 11.81 ft in (3598 mm) |
Dimensions
| Transport Length | 20.09 ft in (6122 mm) |
| Transport Width | 6.14 ft in (1870 mm) |
| Wheelbase | 6.3 ft in (1920 mm) |
| Height To Top Of Suspended Cab | 8.14 ft in (2480 mm) |
Loader
| Clearance At Max Dump Height | 7.64 ft in (2326 mm) |
| Reach At Max Dump Height | 1.3 ft in (395 mm) |
| Dig Depth | 2.17 in (55 mm) |
| Lift Capacity At Full Height | 3406.15 lb (1545 kg) |
| Bucket Breakout Force | 2106459.82 lb (9370 kN) |
| Bucket Width | 73.63 in (1870 mm) |
| Bucket Capacity | 0.66 yd3 (0.5 m3) |
Engine
| Gross Power | 56 hp (41.8 kw) |
Operational
| Operating Weight 4wd | 9953.9 lb (4515 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Turning Radius | 15.5 ft in (4700 mm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 11.5 mph (18.5 km/h) |
