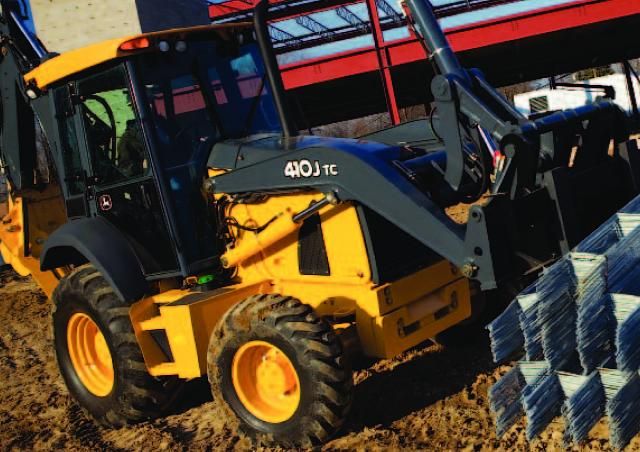

John Deere 410J TMC
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.67 ft in (3860 mm) |
| Reach From Swivel - Std | 19.92 ft in (6070 mm) |
| Dig Depth - Std | 16.08 ft in (4900 mm) |
| Load Height - Ext | 15.5 ft in (4720 mm) |
| Reach From Swivel - Ext | 23.67 ft in (7210 mm) |
| Dig Depth - Ext | 20 ft in (6100 mm) |
| Bucket Dig Force - Std | 14801 lb (6713.63 kg) |
Dimensions
| Transport Length | 23.92 ft in (7290.82 mm) |
| Transport Width | 7.58 ft in (2300 mm) |
| Transport Height | 12.83 ft in (3910 mm) |
| Wheelbase | 7 ft in (2140 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Suspended Cab | 9.25 ft in (2819.4 mm) |
Loader
| Clearance At Max Dump Height | 8.33 ft in (2540 mm) |
| Reach At Max Dump Height | 2.96 ft in (902 mm) |
| Dig Depth | 4.22 in (107 mm) |
| Lift Capacity At Full Height | 7345.81 lb (3332 kg) |
| Bucket Capacity | 1.25 yd3 (0.96 m3) |
| Bucket Width | 85.99 in (2184 mm) |
| Bucket Breakout Force | 10210 lb (45.4 kN) |
Engine
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 96 hp (72 kw) |
| Power Measured @ | 2100 rpm |
| Torque Measured @ | 1500 rpm |
| Net Torque Rise | 26 % |
| Net Max Torque | 278 lb ft (378 Nm) |
| Aspiration | Turbocharged |
| Displacement | 276 cu in (4.5 L) |
Operational
| Fuel Capacity | 41 gal (155 L) |
| Operating Weight 4wd | 18937.8 lb (8590 kg) |
| Hydraulic System Fluid Capacity | 25 gal (95 L) |
| Oil System Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 5.6 gal (21 L) |
| Transmission Fluid Capacity | 4 gal (15 L) |
| Front Axle Fluid Capacity | 1.8 gal (6.5 L) |
| Rear Axle Fluid Capacity | 4.8 gal (18 L) |
| Tire Size Front - 2wd / 4wd | 11L-16 12PR/12.5/80-18 10PR |
| Rear Tires Size 2wd/4wd | 19.5L-24 10PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.2 mph (37.4 km/h) |
| Max Speed Reverse | 13.4 mph (21.6 km/h) |
Hydraulic
| Pump Type | Axial-piston |
| Pump Flow Capacity | 42.1 gal/min (159 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
