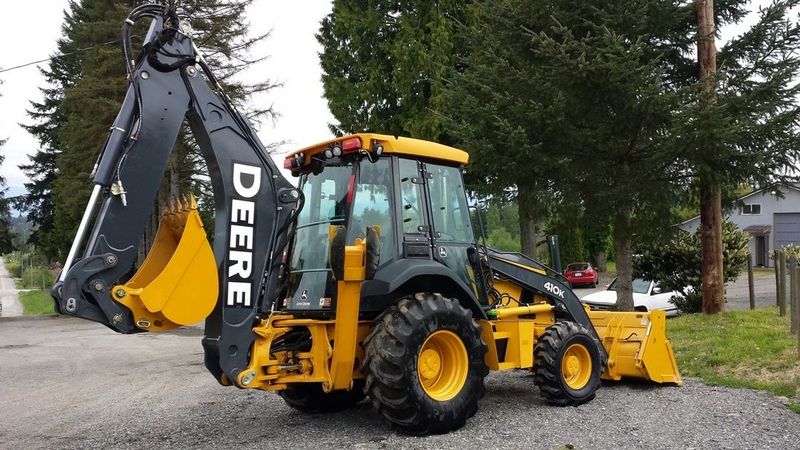

John Deere 410K
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.6 ft in (3840.48 mm) |
| Reach From Swivel - Std | 19.8 ft in (6035.04 mm) |
| Dig Depth - Std | 15.1 ft in (4602.48 mm) |
| Load Height - Ext | 15.6 ft in (4754.88 mm) |
| Reach From Swivel - Ext | 23.8 ft in (7254.24 mm) |
| Dig Depth - Ext | 20 ft in (6096 mm) |
| Bucket Dig Force - Std | 15230 lb (6908.22 kg) |
Dimensions
| Transport Length | 23.11 ft in (7043.93 mm) |
| Transport Width | 7.7 ft in (2346.96 mm) |
| Transport Height | 12.11 ft in (3691.13 mm) |
| Wheelbase | 6.11 ft in (1862.33 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Suspended Cab | 9.31 ft in (2834.64 mm) |
Loader
| Clearance At Max Dump Height | 8.1 ft in (2468.88 mm) |
| Reach At Max Dump Height | 2.5 ft in (762 mm) |
| Dig Depth | 6.7 in (170 mm) |
| Lift Capacity At Full Height | 7200.3 lb (3266 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 92.01 in (2337 mm) |
| Bucket Breakout Force | 10300 lb (45.82 kN) |
Engine
| Engine Make | John Deere PowerTech Plus |
| Engine Model | 4045HT063 |
| Net Power | 107.3 hp (80 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1400 rpm |
| Net Torque Rise | 35 % |
| Net Max Torque | 317.2 lb ft (430 Nm) |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
| Bore | 3.6 in (90 mm) |
| Stroke | 29.3 in (744 mm) |
Operational
| Operating Weight 2wd | 16391.4 lb (7435 kg) |
| Fuel Capacity | 41 gal (155.3 L) |
| Max Weight | 19061.2 lb (8646 kg) |
| Hydraulic System Fluid Capacity | 24.6 gal (93.2 L) |
| Oil System Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 8.7 gal (32.9 L) |
| Transmission Fluid Capacity | 4 gal (15.1 L) |
| Front Axle Fluid Capacity | 1.8 gal (6.5 L) |
| Rear Axle Fluid Capacity | 4.8 gal (18 L) |
| Tire Size Front - 2wd / 4wd | 14.5/75-16.1 SL F-3 |
| Rear Tires Size 2wd/4wd | 21L-24 R-4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | 5 speed, helical-cut gears, full PowerShift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 25 mph (40.3 km/h) |
| Max Speed Reverse | 13.2 mph (21.3 km/h) |
Hydraulic
| Pump Type | Pressure compensated load sensing |
| Pump Flow Capacity | 42 gal/min (159 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
