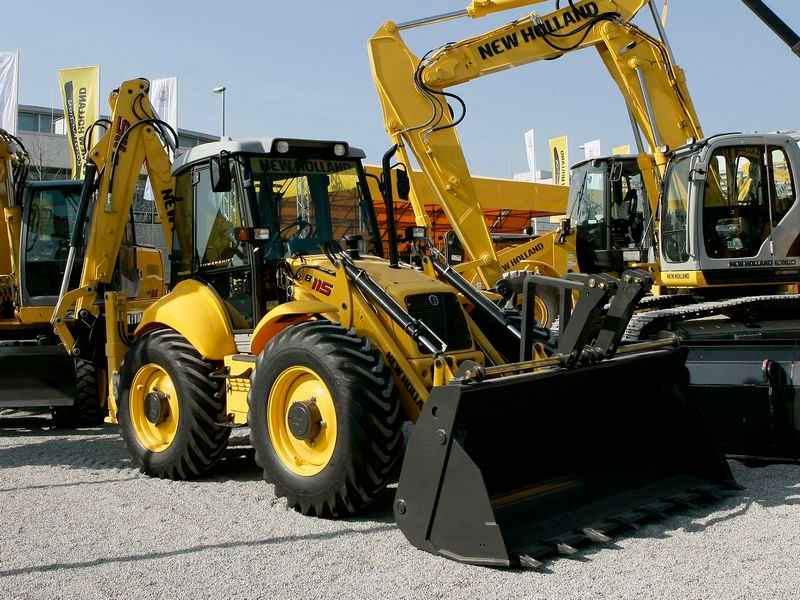

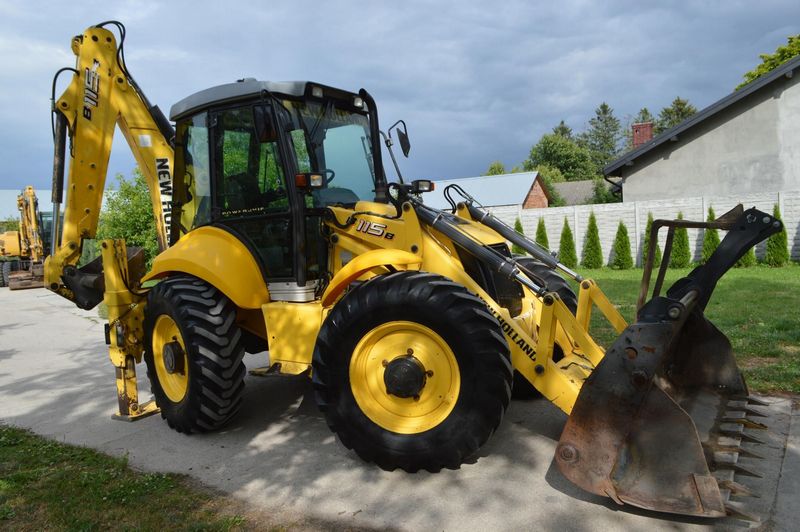

New Holland B115B
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 19.08 ft in (5815 mm) |
| Dig Depth - Std | 14.98 ft in (4565 mm) |
| Reach At Load Height - Std | 7.6 ft in (2315 mm) |
| Load Height - Ext | 21.25 ft in (6475 mm) |
| Reach At Load Height - Ext | 10.27 ft in (3130 mm) |
| Dig Depth - Ext | 18.38 ft in (5600 mm) |
| Bucket Dig Force - Std | 13827.4 lb (6272 kg) |
Dimensions
| Transport Length | 19.51 ft in (5945 mm) |
| Transport Width | 7.63 ft in (2325 mm) |
| Transport Height | 14.7 ft in (4480 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Height To Top Of Suspended Cab | 9.72 ft in (2960 mm) |
Loader
| Clearance At Max Dump Height | 8.7 ft in (2650 mm) |
| Reach At Max Dump Height | 2.71 ft in (825 mm) |
| Dig Depth | 4.53 in (115 mm) |
| Lift Capacity At Full Height | 7826.41 lb (3550 kg) |
| Bucket Capacity | 1.57 yd3 (1.2 m3) |
| Bucket Width | 88.59 in (2250 mm) |
| Bucket Breakout Force | 16635.87 lb (74 kN) |
Engine
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 383.6 lb ft (520 Nm) |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Fuel Capacity | 35.7 gal (135 L) |
| Max Weight | 19555.1 lb (8870 kg) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Turning Radius | 14.2 ft in (4300 mm) |
| Tire Size Front - 2wd / 4wd | 24 inches |
| Rear Tires Size 2wd/4wd | 28 inches |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 900 amps |
Transmission
| Transmission Type | Powershift |
Hydraulic
| Pump Type | Twin Gear Pump |
| Pump Flow Capacity | 39.9 gal/min (151 L/min) |
| Relief Valve Pressure | 2973.3 psi (20500 kPa) |
