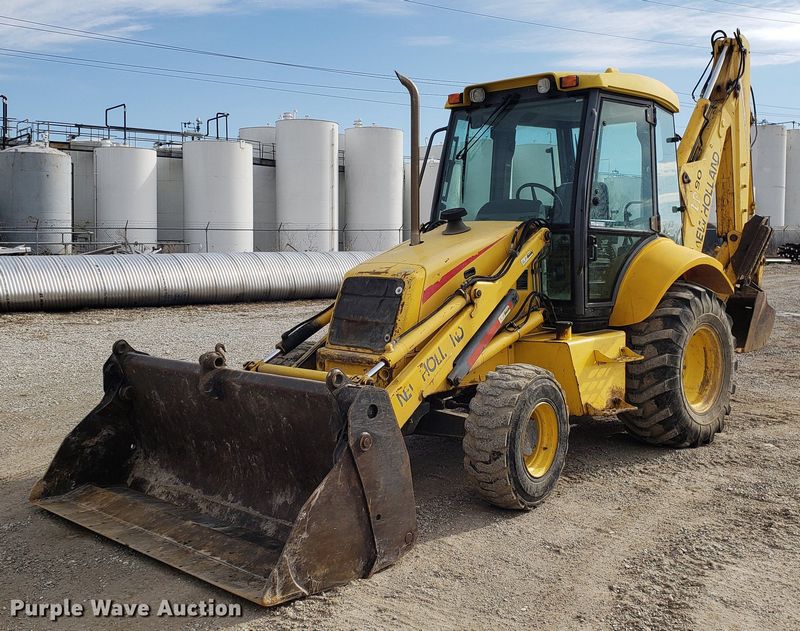

New Holland LB90
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.16 ft in (3705 mm) |
| Reach From Swivel - Std | 18.18 ft in (5540 mm) |
| Dig Depth - Std | 13.9 ft in (4234 mm) |
| Reach At Load Height - Std | 3.89 ft in (1183 mm) |
| Dig Depth - Ext | 17.88 ft in (5447 mm) |
| Bucket Dig Force - Ext | 12808 lb (5809.62 kg) |
| Bucket Dig Force - Std | 12808 lb (5809.62 kg) |
| Reach At Load Height - Ext | 8.72 ft in (2657 mm) |
| Reach From Swivel - Ext | 21.83 ft in (6651 mm) |
| Load Height - Ext | 14.61 ft in (4453 mm) |
Dimensions
| Transport Length | 23.19 ft in (7066 mm) |
| Transport Width | 10.59 ft in (3226 mm) |
| Transport Height | 13.09 ft in (3988 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.3 ft in (394 mm) |
| Height To Top Of Suspended Cab | 9.47 ft in (2885 mm) |
Loader
| Clearance At Max Dump Height | 8.91 ft in (2715 mm) |
| Reach At Max Dump Height | 2.61 ft in (795 mm) |
| Bucket Breakout Force | 13942 lb (62.02 kN) |
| Bucket Width | 88.59 in (2250 mm) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Lift Capacity At Full Height | 7780.12 lb (3529 kg) |
Engine
| Engine Make | 2249 |
| Engine Model | BSD 450T |
| Gross Power | 98 hp (73.1 kw) |
| Net Power | 98 hp (73.1 kw) |
| Aspiration | Turbocharged |
| Displacement | 305.2 cu in (5 L) |
Operational
| Fuel Capacity | 33 gal (124.9 L) |
| Operating Weight 4wd | 14714 lb (6674.2 kg) |
| Hydraulic System Fluid Capacity | 28 gal (106 L) |
| Oil System Fluid Capacity | 4.5 gal (17.1 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | power-reversing/torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed Reverse | 25 mph (40.3 km/h) |
Hydraulic
| Pump Type | dual gear |
| Pump Flow Capacity | 40 gal/min (151.5 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
