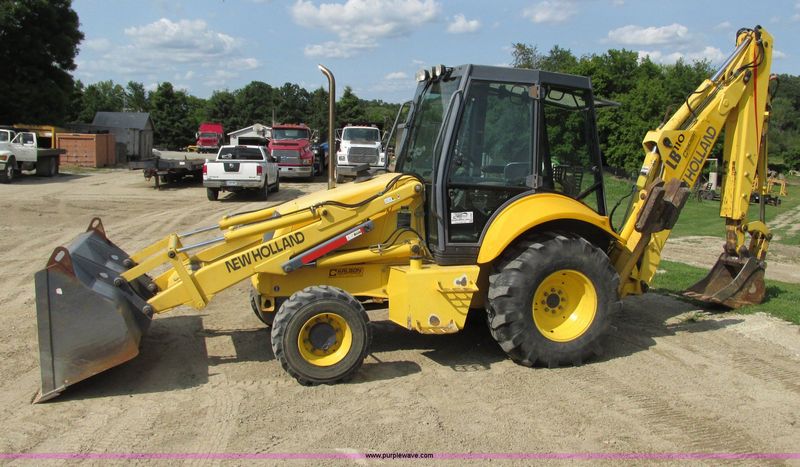

New Holland LB110
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.83 ft in (3910 mm) |
| Reach From Swivel - Std | 19.19 ft in (5849 mm) |
| Dig Depth - Std | 15.02 ft in (4577 mm) |
| Reach At Load Height - Std | 6.42 ft in (1956 mm) |
| Dig Depth - Ext | 18.91 ft in (5762 mm) |
| Bucket Dig Force - Ext | 12808.86 lb (5810 kg) |
| Bucket Dig Force - Std | 12808.86 lb (5810 kg) |
| Reach At Load Height - Ext | 9.53 ft in (2902 mm) |
| Reach From Swivel - Ext | 22.73 ft in (6927 mm) |
| Load Height - Ext | 15.19 ft in (4628 mm) |
Dimensions
| Transport Length | 23.33 ft in (7108 mm) |
| Transport Width | 10.59 ft in (3226 mm) |
| Transport Height | 13.09 ft in (3988 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.3 ft in (394 mm) |
| Height To Top Of Suspended Cab | 9.47 ft in (2885 mm) |
Loader
| Clearance At Max Dump Height | 8.92 ft in (2718 mm) |
| Reach At Max Dump Height | 2.61 ft in (795 mm) |
| Bucket Breakout Force | 13942 lb (62.02 kN) |
| Bucket Width | 88.59 in (2250 mm) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Lift Capacity At Full Height | 7780.12 lb (3529 kg) |
Engine
| Engine Make | 2249 |
| Engine Model | BSD 450T |
| Gross Power | 108 hp (80.6 kw) |
| Net Power | 103 hp (76.9 kw) |
| Net Max Torque | 326 lb ft (442 Nm) |
| Displacement | 305.2 cu in (5 L) |
Operational
| Operating Weight 4wd | 32659.3 lb (14814 kg) |
| Fuel Capacity | 33 gal (124.9 L) |
| Hydraulic System Fluid Capacity | 38 gal (143.8 L) |
| Oil System Fluid Capacity | 4.5 gal (17.1 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | power-reveresing/torque converter, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed Reverse | 25 mph (40.3 km/h) |
Hydraulic
| Pump Type | dual gear, open center |
| Pump Flow Capacity | 42 gal/min (159 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
