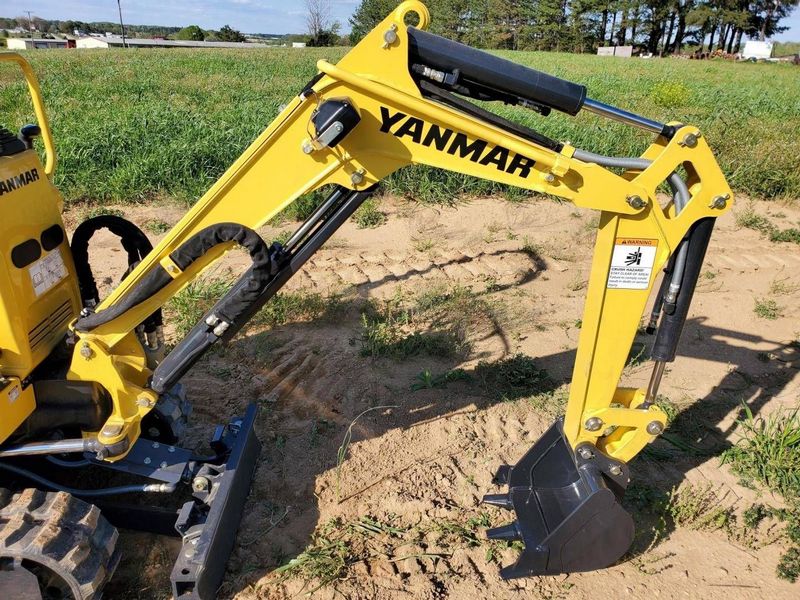

Yanmar SV08-1B
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Boom Swing - Left | 45 degrees |
| Boom Swing - Right | 90 degrees |
Dimensions
| Width To Outside Of Tracks | 2.76 ft in (840 mm) |
| Length Of Track On Ground | 8.54 ft in (2600 mm) |
| Ground Clearance | 0.43 ft in (130 mm) |
| Height To Top Of Cab | 7.55 ft in (2300 mm) |
| Tail Swing Radius | 2.38 ft in (725 mm) |
Undercarriage
| Ground Pressure | 4.16 psi (28.62 kPa) |
| Max Travel Speed | 1.12 mph (1.8 km/h) |
Engine
| Engine Make | YANMAR |
| Engine Model | 2TE67L-BV4 |
| Gross Power | 10.3 hp (7.7 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operating Weight | 2348 lb (1065 kg) |
| Fuel Capacity | 2.7 gal (10 L) |
| Hydraulic Pump Flow Capacity | 2.6 gal/min (9.9 L/min) |
Swing Mechanism
| Swing Speed | 8.4 rpm |
Buckets
| Bucket Digging Force - Sae | 2360 lb (10.5 kN) |
| Arm Digging Force | 1390 lb (6.2 kN) |
