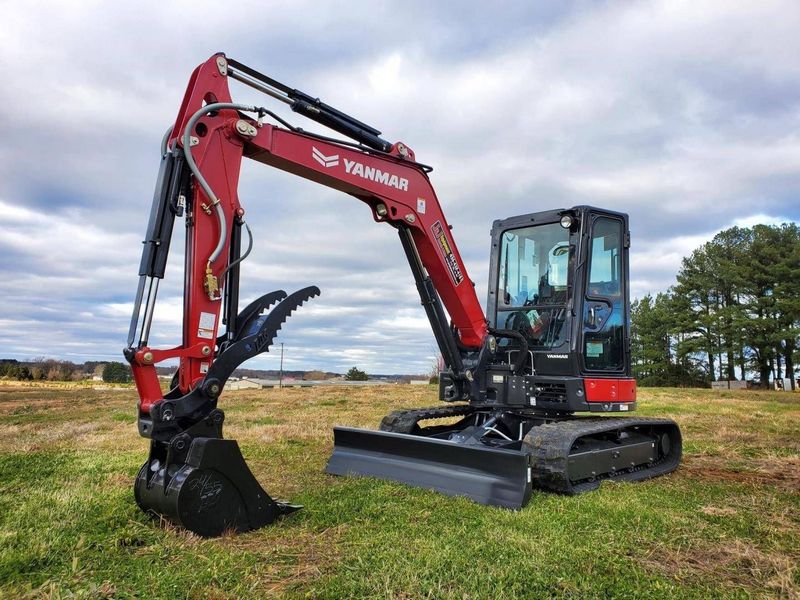

Yanmar ViO55-6A
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 13.6 ft in (4145.28 mm) |
| Boom Swing - Right | 68 degrees |
| Boom Swing - Left | 68 degrees |
Dimensions
| Width To Outside Of Tracks | 6.53 ft in (1990 mm) |
| Ground Clearance | 1.14 ft in (345 mm) |
| Height To Top Of Cab | 8.34 ft in (2540 mm) |
| Tail Swing Radius | 3.3 ft in (1005.84 mm) |
| Overall Height | 19.89 ft in (6060 mm) |
| Wheelbase | 8.5 ft in (2590 mm) |
Undercarriage
| Max Travel Speed | 2.6 mph (4.19 km/h) |
| Min Travel Speed | 1.4 mph (2.26 km/h) |
Engine
| Engine Model | YANMAR 4TNV86CT-PBV |
| Gross Power | 47.6 hp (35.5 kw) |
| Power Measured @ | 2400 rpm |
| Aspiration | Water-cooled 4-cycle diesel |
Operational
| Operating Weight | 11850 lb (5375.1 kg) |
| Fuel Capacity | 17.4 gal (65.9 L) |
| Hydraulic System Relief Valve Pressure | 11205 psi (77255.7 kPa) |
| Hydraulic Pump Flow Capacity | 36.5 gal/min (138.2 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Weights
| Steel Tracks | 11916 lb (5405.1 kg) |
| Ground Bearing Pressure (Rubber Tracks) | 4.3 psi (29.3 kPa) |
| Ground Bearing Pressure (Steel Tracks) | 4.4 psi (29.8 kPa) |
| Rubber Tracks | 11850 lb (5375.1 kg) |
Buckets
| Bucket Digging Force - Sae | 7464 lb (33.3 kN) |
| Arm Digging Force | 5058 lb (22.5 kN) |
Blade
| Blade Height | 15.8 in (400 mm) |
| Blade Width | 6.5 ft in (1970 mm) |
