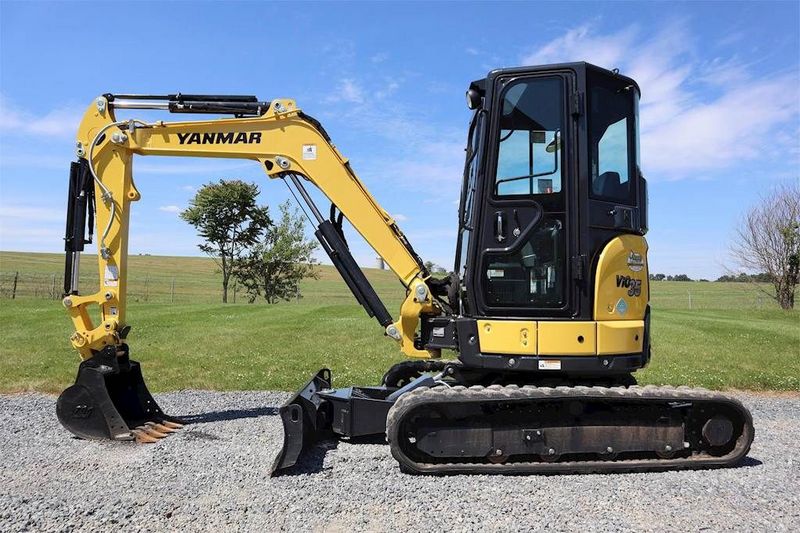

Yanmar ViO35-6A
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 11.3 ft in (3444.24 mm) |
| Boom Swing - Right | 65 degrees |
| Boom Swing - Left | 43 degrees |
Dimensions
| Width To Outside Of Tracks | 5.71 ft in (1740 mm) |
| Length Of Track On Ground | 23.04 ft in (7020 mm) |
| Ground Clearance | 1.05 ft in (320 mm) |
| Height To Top Of Cab | 8.11 ft in (2470 mm) |
| Overall Height | 16.77 ft in (5110 mm) |
| Wheelbase | 7.09 ft in (2160 mm) |
Undercarriage
| Min Travel Speed | 1.68 mph (2.7 km/h) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Engine Model | 3TNV88F-ESBV |
| Gross Power | 24.4 hp (18.2 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Water-cooled 4-cycle diesel |
Operational
| Operating Weight | 7905 lb (3585.7 kg) |
| Fuel Capacity | 10.9 gal (41 L) |
| Hydraulic System Relief Valve Pressure | 6410 psi (44195.4 kPa) |
| Hydraulic Pump Flow Capacity | 19.6 gal/min (74.2 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Weights
| Steel Tracks | 8125 lb (3685.5 kg) |
| Ground Bearing Pressure (Rubber Tracks) | 4.8 psi (33.1 kPa) |
| Rubber Tracks | 7905 lb (3585.7 kg) |
Buckets
| Bucket Digging Force - Sae | 5643 lb (25.2 kN) |
| Arm Digging Force | 7216 lb (32.1 kN) |
Blade
| Blade Stroke | 1.4 ft in (425 mm) |
| Blade Raise | 1.3 ft in (370 mm) |
| Blade Width | 5.8 ft in (1740 mm) |
