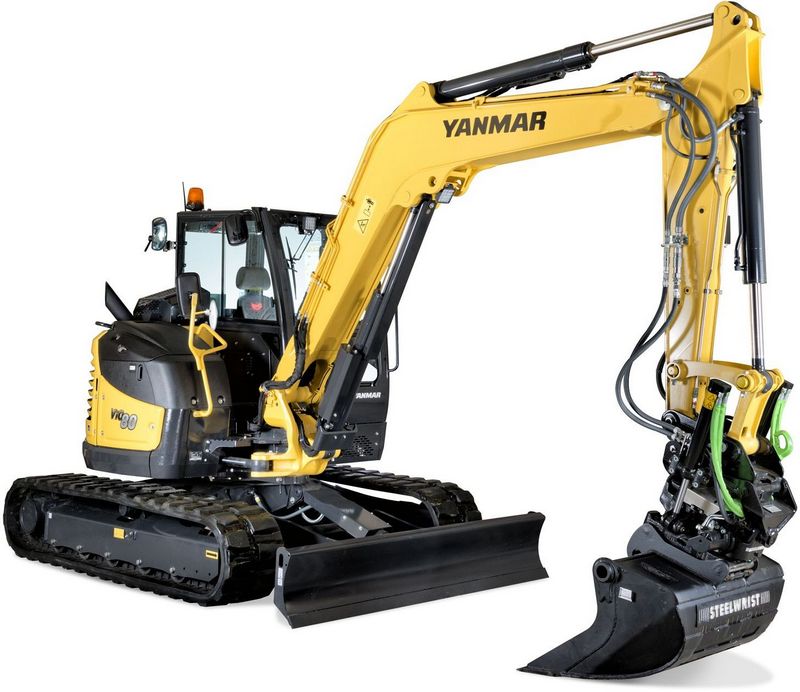

Yanmar ViO80-1A
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 15.4 ft in (4693.92 mm) |
| Boom Swing - Right | 60 degrees |
| Boom Swing - Left | 57 degrees |
Dimensions
| Width To Outside Of Tracks | 7.45 ft in (2270 mm) |
| Length Of Track On Ground | 21.2 ft in (6460 mm) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Height To Top Of Cab | 8.8 ft in (2680 mm) |
| Overall Height | 23.73 ft in (7230 mm) |
| Removal Counterweight Clearance | 3.9 ft in (1188.72 mm) |
| Wheelbase | 9.49 ft in (2890 mm) |
Undercarriage
| Max Travel Speed | 2.8 mph (4.51 km/h) |
| Min Travel Speed | 1.6 mph (2.58 km/h) |
Engine
| Engine Model | YANMAR 4TNV98C-WBV |
| Gross Power | 56.9 hp (42.5 kw) |
| Net Power | 55.7 hp (41.6 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Water-cooled 4-cycle diesel |
Operational
| Operating Weight | 18136 lb (8226.4 kg) |
| Fuel Capacity | 30.4 gal (115.1 L) |
| Hydraulic System Relief Valve Pressure | 11298 psi (77896.9 kPa) |
| Hydraulic Pump Flow Capacity | 56.3 gal/min (213.2 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Weights
| Steel Tracks | 18268 lb (8286.3 kg) |
| Ground Bearing Pressure (Rubber Tracks) | 5.2 psi (35.9 kPa) |
| Ground Bearing Pressure (Steel Tracks) | 5.3 psi (36.2 kPa) |
| Rubber Tracks | 18136 lb (8226.4 kg) |
Buckets
| Bucket Digging Force - Sae | 11330 lb (50.4 kN) |
| Arm Digging Force | 14275 lb (63.5 kN) |
Blade
| Blade Stroke | 1.6 ft in (460 mm) |
| Blade Raise | 1.6 ft in (480 mm) |
| Blade Width | 7.5 ft in (2260 mm) |
