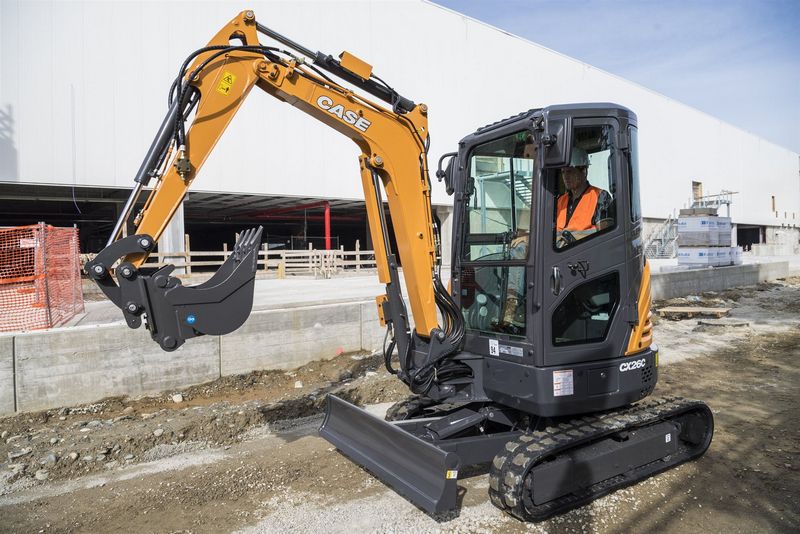

Case CX26C
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.23 ft in (4030 mm) |
| Max Cutting Height | 13.62 ft in (4150 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Loading Height | 9.62 ft in (2930 mm) |
| Max Reach Along Ground | 14.24 ft in (4340 mm) |
| Max Vertical Wall Digging Depth | 4.79 ft in (1460 mm) |
| Max Digging Depth | 7.94 ft in (2420 mm) |
| Boom/Stick Option (Hex) 1 | 3 ft 8 in (1.12 m) Arm |
| Max.Dumping Height | 9.62 ft in (2930 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 13.9 ft in (4235 mm) |
| Shipping Length Of Unit | 13.23 ft in (4030 mm) |
| Max Loading Height | 9.95 ft in (3030 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Reach Along Ground | 14.9 ft in (4540 mm) |
| Max Vertical Wall Digging Depth | 5.27 ft in (1605 mm) |
| Max Digging Depth | 8.68 ft in (2645 mm) |
| Boom/Stick Option (Hex) 2 | 4 ft 5 in (1.35 m) Arm |
Dimensions
| Width To Outside Of Tracks | 4.93 ft in (1500 mm) |
| Length Of Track On Ground | 4.89 ft in (1490 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 2.47 ft in (750 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 3 |
Engine
| Fuel | Diesel |
| Fuel Injection | Mechanical |
| Emissions Level | Tier 4 Final |
| Number Of Cylinders | 3 |
| Max Speed | 2.7 mph (4.4 km/h) |
| Engine Model | Kubota D1305 |
| Gross Power | 24.8 hp (18.5 kw) |
| Cooling System | Water-cooled |
| Net Power | 23.2 hp (17.4 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 77 cu in (1.3 L) |
| Max Torque | 60.1 lb ft (81.4 Nm) |
| Torque Measured @ | 1600 rpm |
Drive Train
| Max Drawbar Pull | 3124.9 lb (13.9 kN) |
| Maximum Traction Force | 3300 lb (14.7 kN) |
| Gradeability | 30 degrees |
| Ground Pressure | 4.6 psi (31.8 kPa) |
Lift System
| Bucket Breakout Force | 4743.5 lb (21.1 kN) |
| Lift Over Side Max. Reach | 463 lb (210 kg) |
| Lift Over End Max. Reach - Lbs | 1697.6 lb (770 kg) |
Capacities
| Engine Oil W/ Filter Change | 1.6 gal (5.7 L) |
| Fuel Tank | 8 gal (30 L) |
| Hydraulic Tank | 14.6 gal (55 L) |
| Radiator | 1.4 gal (5 L) |
Operational
| Operating Weight | 5853.3 lb (2655 kg) |
Electrical
| Alternator | 40 amp |
| Voltage | 12 V |
| Battery | 1 x 12 V x 58 Ah |
Swing Mechanism
| Swing Speed | 9.1 rpm |
Hydraulic System
| Main Pump - Maximum Flow | 14.6 gal/min (55.2 L/min) |
| Relief Pressure | 3130 psi, 220 bar |
Boom
| Arm Length | 6.5 ft in (1981.2 mm) |
| Boom Length | 3.8 ft in (1158.3 mm) |
