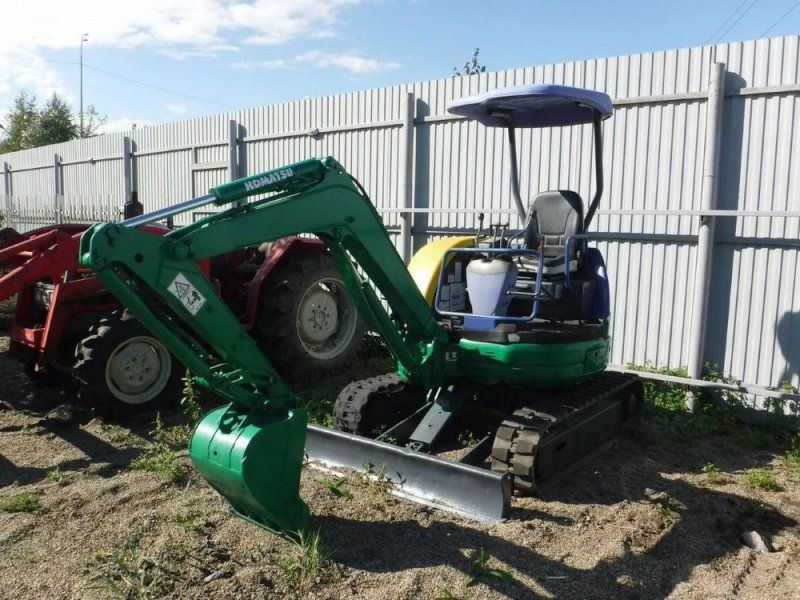

Komatsu PC20MRX-1
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 12.62 ft in (3845 mm) |
| Max Loading Height | 8.47 ft in (2580 mm) |
| Max Reach Along Ground | 13.51 ft in (4115 mm) |
| Max Vertical Wall Digging Depth | 6.63 ft in (2020 mm) |
| Max Digging Depth | 7.75 ft in (2360 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5'11" (1809mm)/Stick 3'1" (930mm) |
Dimensions
| Width To Outside Of Tracks | 4.76 ft in (1450 mm) |
| Length Of Track On Ground | 6.06 ft in (1845 mm) |
| Ground Clearance | 0.94 ft in (285 mm) |
| Height To Top Of Cab | 7.91 ft in (2410 mm) |
| Tail Swing Radius | 2.63 ft in (800 mm) |
| Removal Counterweight Clearance | 1.78 ft in (540 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.94 ft in (1200 mm) |
| Ground Pressure | 4.6 psi (31.72 kPa) |
| Max Travel Speed | 2.99 mph (4.8 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | 3D74E |
| Gross Power | 18.8 hp (14 kw) |
| Displacement | 61.4 cu in (1.1 L) |
Operational
| Operating Weight | 5048.6 lb (2290 kg) |
| Fuel Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 5.6 gal (21 L) |
| Hydraulic System Relief Valve Pressure | 2990 psi (20615.4 kPa) |
| Hydraulic Pump Flow Capacity | 15.8 gal/min (59.8 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.1 m3) |
