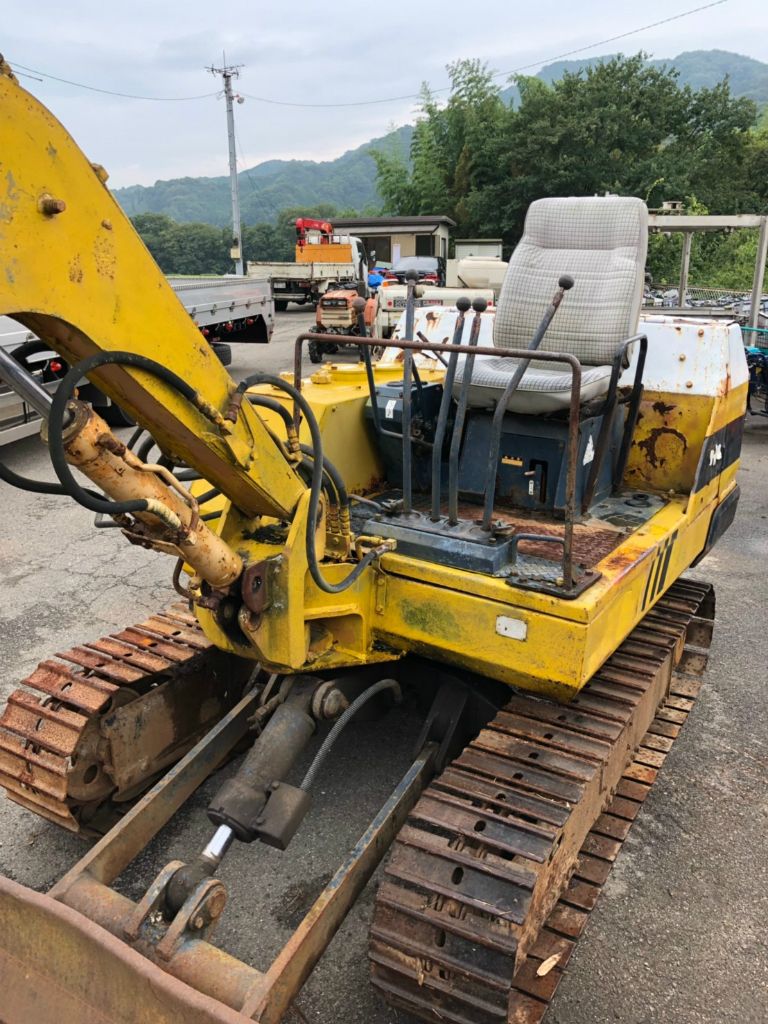

Komatsu PC20-2
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.44 ft in (4400 mm) |
| Max Cutting Height | 11.44 ft in (3485 mm) |
| Shipping Height Of Unit | 7.67 ft in (2335 mm) |
| Max Loading Height | 7.7 ft in (2345 mm) |
| Max Reach Along Ground | 14.26 ft in (4345 mm) |
| Max Vertical Wall Digging Depth | 6.42 ft in (1955 mm) |
| Max Digging Depth | 8.06 ft in (2455 mm) |
| Boom/Stick Option (Hex) 1 | Stick 3'9" (1150mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.03 ft in (3665 mm) |
| Max Loading Height | 8.35 ft in (2545 mm) |
| Shipping Height Of Unit | 7.67 ft in (2335 mm) |
| Max Reach Along Ground | 15.97 ft in (4865 mm) |
| Max Vertical Wall Digging Depth | 7.4 ft in (2255 mm) |
| Max Digging Depth | 9.7 ft in (2955 mm) |
| Boom/Stick Option (Hex) 2 | Stick 5'5" (1640mm) |
Dimensions
| Width To Outside Of Tracks | 4.83 ft in (1470 mm) |
| Length Of Track On Ground | 5.17 ft in (1575 mm) |
| Ground Clearance | 1.01 ft in (305 mm) |
| Height To Top Of Cab | 7.67 ft in (2335 mm) |
| Tail Swing Radius | 4.53 ft in (1380 mm) |
| Removal Counterweight Clearance | 1.88 ft in (570 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.84 ft in (1170 mm) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
| Max Travel Speed | 1.06 mph (1.7 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | 3D84-1A |
| Gross Power | 21.3 hp (15.9 kw) |
| Displacement | 86.2 cu in (1.5 L) |
Operational
| Operating Weight | 6170 lb (2798.7 kg) |
| Fuel Capacity | 10.6 gal (40 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Hydraulic System Relief Valve Pressure | 2490 psi (17168 kPa) |
| Hydraulic Pump Flow Capacity | 20.7 gal/min (78 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
