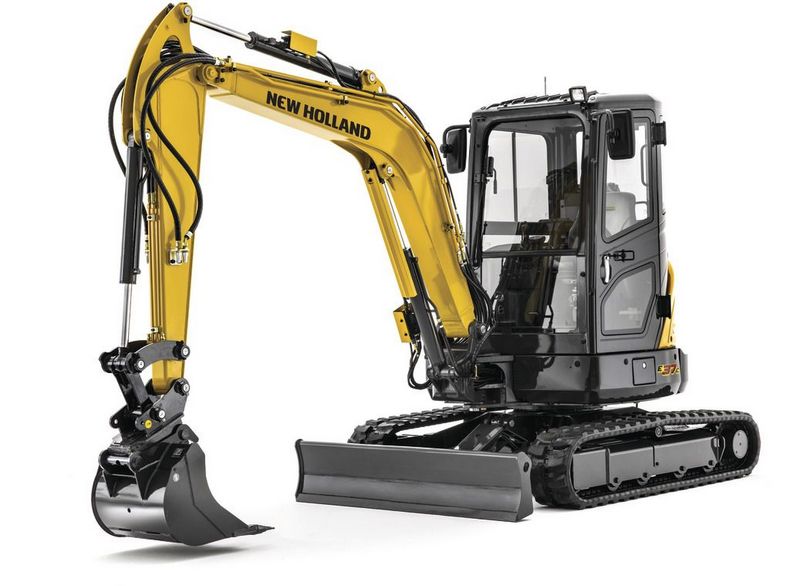

New Holland E37C
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 7.2 ft in (2194.56 mm) |
| Max Digging Depth | 10.3 ft in (3139.44 mm) |
| Max Digging Reach | 17.5 ft in (5334 mm) |
| Max Digging Reach On Ground | 17.11 ft in (5212.08 mm) |
| Bucket Digging Force | 6900 lb (30.7 kN) |
| Overall Reach Height | 15.9 ft in (4846.32 mm) |
| Arm Digging Force | 4390 lb (19.53 kN) |
| Max.Dumping Height | 11.3 ft in (3444.24 mm) |
Dimensions
| Tail Swing Radius | 2.86 ft in (870 mm) |
| Arm (Standard Length) | 4.27 ft in (1.3 m) |
| Upper Structure Ground Clearance | 1.78 ft in (540 mm) |
| Center To Center – Idler To Sprocket | 5.58 ft in (1700 mm) |
| Minimum Ground Clearance | 11.42 in (290 mm) |
| Operating Weight(Canpoy) | 7991.76 lb (3625 kg) |
| Overall Height | 8.21 ft in (2500 mm) |
| Overall Track Length | 6.99 ft in (2130 mm) |
| Overall Track Width | 5.71 ft in (1740 mm) |
| Overall Transport Length | 188.59 in (4790 mm) |
| Track Shoe Width | 0.99 ft in (300 mm) |
Engine
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Cylinders | 3 |
| Gross Horsepower – Sae J1995 | 24.4 hp (18.2 kw) |
| Fuel Injection | Mechanical with electronic governor |
| Cooling Method | Water-cooled |
| Engine Model | Yanmar 3TNV88F-ESHYB |
| Displacement | 100.2 cu in (1.7 L) |
Drive Train
| Travel Speeds - 1st | 1.6 mph (2.6 km/h) |
| Travel Speeds - 2nd | 2.6 mph (4.2 km/h) |
| Maximum Traction Force | 6834.2 lb (30.4 kN) |
| Gradeability | 30 degrees |
Capacities
| Engine Oil W/ Filter Change | 1.8 gal (6.7 L) |
| Hydraulic Tank - Refill Capacity | 9.8 gal (37 L) |
| Hydraulic Tank - Total System | 15.9 gal (60 L) |
| Fuel Tank | 10.6 gal (40 L) |
| Radiator | 1.5 gal (5.5 L) |
Performance
| Maximum Dig Radius | 209.3 in (5315 mm) |
| Dig Radius At Groundline | 204.8 in (5200 mm) |
| Maximum Dig Depth | 123.5 in (3135 mm) |
| Vertical Straight Wall Dig Depth | 86.3 in (2190 mm) |
Blade
| Backfill Blade Height | 14.6 in (370 mm) |
| Backfill Blade Width | 68.6 in (1740 mm) |
| Backfill Blade Dig Depth | 14.8 in (375 mm) |
| Backfill Blade Rise Above Ground | 15.4 in (390 mm) |
