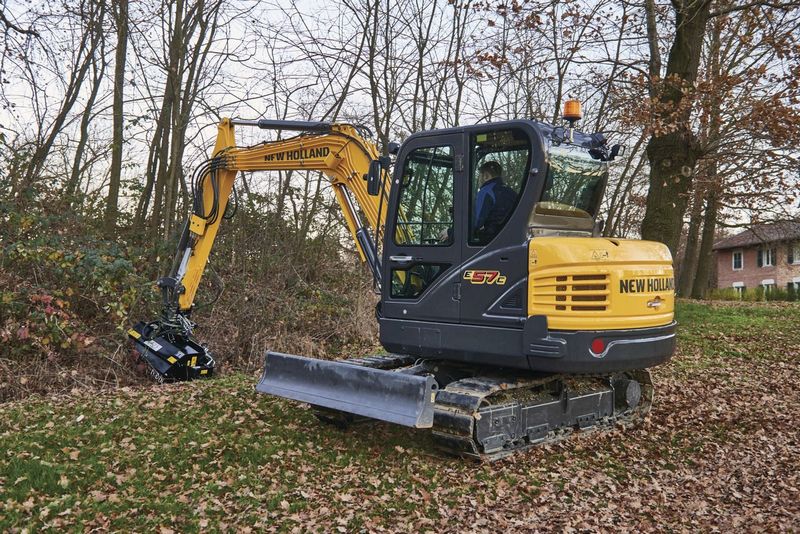

New Holland E57C
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 10.6 ft in (3230.88 mm) |
| Max Digging Depth | 12.6 ft in (3840.48 mm) |
| Overall Reach Height | 19 ft in (5791.2 mm) |
| Max Digging Reach | 20.2 ft in (6156.96 mm) |
| Max Digging Reach On Ground | 19.9 ft in (6065.52 mm) |
| Max.Dumping Height | 13.3 ft in (4053.84 mm) |
| Arm Digging Force | 7190 lb (31.99 kN) |
| Bucket Digging Force | 9550 lb (42.49 kN) |
Dimensions
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Upper Structure Ground Clearance | 2.27 ft in (690 mm) |
| Center To Center – Idler To Sprocket | 6.53 ft in (1990 mm) |
| Minimum Ground Clearance | 14.97 in (380 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Overall Track Length | 8.31 ft in (2530 mm) |
| Overall Track Width | 5.91 ft in (1800 mm) |
| Overall Transport Length | 232.29 in (5900 mm) |
| Track Shoe Width | 1.25 ft in (380 mm) |
| Arm (Standard Length) | 5.25 ft in (1.6 m) |
Engine
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Cylinders | 4 |
| Gross Horsepower – Sae J1995 | 66.9 hp (49.9 kw) |
| Fuel Injection | Mechanical with electronic governor |
| Cooling Method | Water-cooled |
| Engine Model | Yanmar 4TNV98C |
| Displacement | 203 cu in (3.4 L) |
Drive Train
| Travel Speeds - 1st | 1.4 mph (2.3 km/h) |
| Travel Speeds - 2nd | 2.6 mph (4.2 km/h) |
| Maximum Traction Force | 11690.1 lb (52 kN) |
| Gradeability | 35 degrees |
Capacities
| Engine Oil W/ Filter Change | 3.1 gal (11.6 L) |
| Hydraulic Tank - Refill Capacity | 18.5 gal (70 L) |
| Hydraulic Tank - Total System | 31.8 gal (120 L) |
| Fuel Tank | 31.8 gal (120 L) |
| Radiator | 2.6 gal (9.5 L) |
Performance
| Maximum Dig Radius | 242.2 in (6150 mm) |
| Dig Radius At Groundline | 236.7 in (6010 mm) |
| Maximum Dig Depth | 150.4 in (3820 mm) |
| Vertical Straight Wall Dig Depth | 126 in (3200 mm) |
Blade
| Backfill Blade Height | 13.8 in (350 mm) |
| Backfill Blade Width | 74.1 in (1880 mm) |
| Backfill Blade Dig Depth | 23.3 in (590 mm) |
| Backfill Blade Rise Above Ground | 15.4 in (390 mm) |
