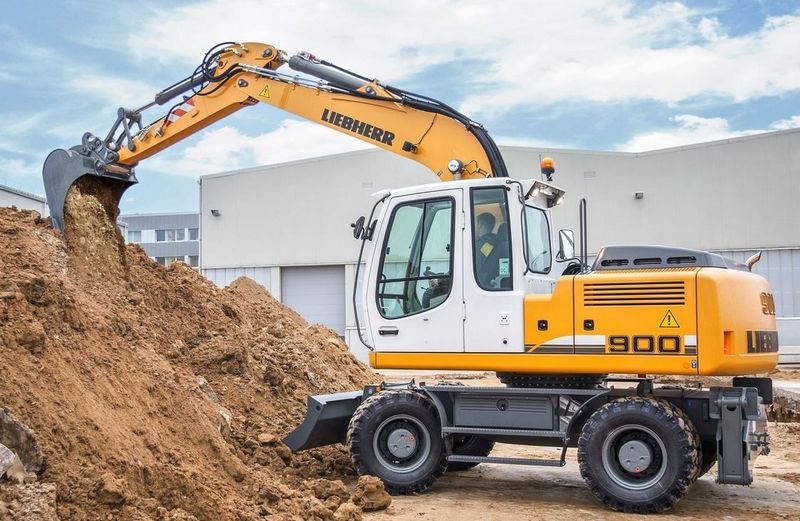

Liebherr A900CUS
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.08 ft in (8558.79 mm) |
| Shipping Height Of Unit | 10.33 ft in (3148.59 mm) |
| Max Cutting Height | 33 ft in (10058.4 mm) |
| Max Loading Height | 23.58 ft in (7187.19 mm) |
| Max Reach Along Ground | 28.83 ft in (8787.39 mm) |
| Max Vertical Wall Dig Depth | 12.5 ft in (3810 mm) |
| Max Digging Depth | 17.43 ft in (5309.62 mm) |
| Boom/Stick Option (Mex) 1 | 11.17 ft boom / 7.42 ft stick |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.08 ft in (8558.79 mm) |
| Shipping Height Of Unit | 10.33 ft in (3148.59 mm) |
| Max Cutting Height | 33.5 ft in (10210.8 mm) |
| Max Loading Height | 24.08 ft in (7339.59 mm) |
| Max Reach Along Ground | 29.5 ft in (8991.6 mm) |
| Max Vertical Wall Dig Depth | 13 ft in (3962.4 mm) |
| Max Digging Depth | 18.08 ft in (5510.79 mm) |
| Boom/Stick Option (Mex) 2 | 11.17 boom / 8 ft stick |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.33 ft in (3148.59 mm) |
| Shipping Length Of Unit | 28.08 ft in (8558.79 mm) |
| Max Cutting Height | 33.92 ft in (10338.82 mm) |
| Max Loading Height | 24.75 ft in (7543.8 mm) |
| Max Reach Along Ground | 30.17 ft in (9195.82 mm) |
| Max Vertical Wall Dig Depth | 13.5 ft in (4114.8 mm) |
| Max Digging Depth | 18.68 ft in (5690.62 mm) |
| Boom/Stick Option (Mex) 3 | 11.17 boom / 8.67 ft stick |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.33 ft in (3148.59 mm) |
| Shipping Length Of Unit | 28.08 ft in (8558.79 mm) |
| Max Cutting Height | 33.5 ft in (10210.8 mm) |
| Max Loading Height | 24.25 ft in (7391.4 mm) |
| Max Reach Along Ground | 29.5 ft in (8991.6 mm) |
| Max Vertical Wall Dig Depth | 13 ft in (3962.4 mm) |
| Max Digging Depth | 18.08 ft in (5510.79 mm) |
| Boom/Stick Option (Mex) 4 | 11.83 boom / 7.42 ft stick |
Dimensions
| Wheelbase | 8.33 ft in (2538.99 mm) |
| Overall Width | 8.17 in (2490.22 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
| Overall Width - Outriggers Down | 12.08 ft in (3681.99 mm) |
| Upper Structure Clearance | 4.08 ft in (1243.59 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D924 TI-E |
| Gross Power | 118 hp (88 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 403 cu in (6.7 L) |
| Aspiration | direct injection turbo-charged after-cooled reduced emissions |
Operational
| Fuel Capacity | 79 gal (299.1 L) |
| Hydraulic System Fluid Capacity | 85 gal (321.8 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076 psi (243.1 kPa) |
| Hydraulic Pump Flow Capacity | 71 gal/min (268.8 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 31.1 lb ft (- Nm) |
Transmission
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 17.4 mph (28.1 km/h) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (0.9 m3) |
