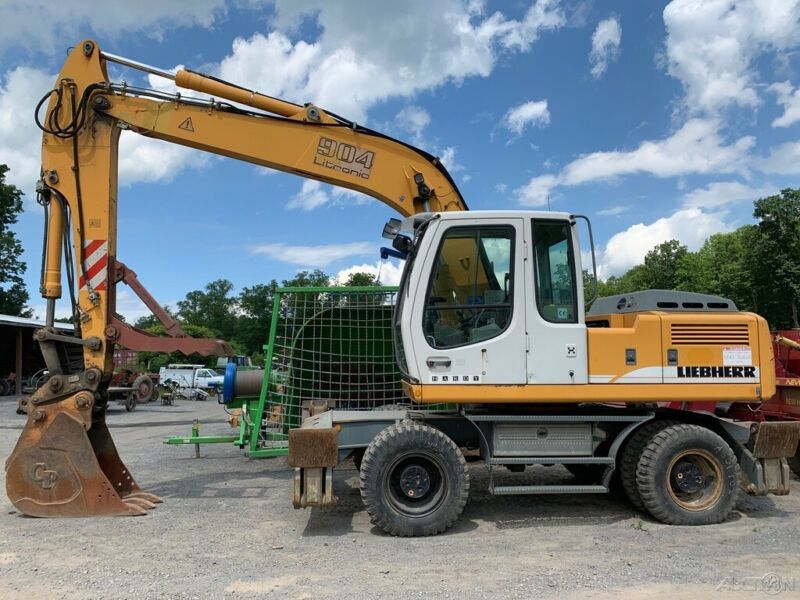

Liebherr A904C
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 29.67 ft in (9043.42 mm) |
| Shipping Height Of Unit | 10.33 ft in (3148.59 mm) |
| Max Cutting Height | 32.67 ft in (9957.82 mm) |
| Max Loading Height | 22.5 ft in (6858 mm) |
| Max Reach Along Ground | 29.83 ft in (9092.19 mm) |
| Max Vertical Wall Dig Depth | 14 ft in (4267.2 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Boom/Stick Option (Mex) 1 | Hydr. Adjustable Boom 3800mm w/stick 2250mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 29.67 ft in (9043.42 mm) |
| Shipping Height Of Unit | 10.5 ft in (3148.59 mm) |
| Max Cutting Height | 33.08 ft in (10082.79 mm) |
| Max Loading Height | 23.17 ft in (7062.22 mm) |
| Max Reach Along Ground | 30.5 ft in (9296.4 mm) |
| Max Vertical Wall Dig Depth | 14.5 ft in (4419.6 mm) |
| Max Digging Depth | 19.83 ft in (6044.19 mm) |
| Boom/Stick Option (Mex) 2 | Hydr. Adjustable Boom 3800mm w/stick 2450mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.83 ft in (3148.59 mm) |
| Shipping Length Of Unit | 29.5 ft in (8991.6 mm) |
| Max Cutting Height | 33.5 ft in (10210.8 mm) |
| Max Loading Height | 23.42 ft in (7138.42 mm) |
| Max Reach Along Ground | 31.17 ft in (9500.62 mm) |
| Max Vertical Wall Dig Depth | 15 ft in (4572 mm) |
| Max Digging Depth | 20.5 ft in (6248.4 mm) |
| Boom/Stick Option (Mex) 3 | Hydr. Adjustable Boom 3800mm w/stick 2650mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Shipping Length Of Unit | 29.53 ft in (9000 mm) |
| Max Cutting Height | 32.92 ft in (10034.02 mm) |
| Max Loading Height | 23.17 ft in (7062.22 mm) |
| Max Reach Along Ground | 31.93 ft in (9732.27 mm) |
| Max Vertical Wall Dig Depth | 14.5 ft in (4419.6 mm) |
| Max Digging Depth | 21.67 ft in (6605.02 mm) |
| Boom/Stick Option (Mex) 4 | Hydr. Adjustable Boom 3800mm w/stick 3050mm |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 8.16 ft in (2485 mm) |
| Overall Width | 8.14 in (2480 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 12.13 ft in (3695 mm) |
| Height To Top Of Cab | 10.37 ft in (3160 mm) |
| Upper Structure Clearance | 4.06 ft in (1235 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 924 TI-E |
| Net Power | 135 hp (100.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | direct injection turbo-charged and after-cooled reduced emissions |
Operational
| Operating Weight | 51808.7 lb (23500 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Type | variable displacement swash plate |
| Hydraulic Pump Flow Capacity | 87.2 gal/min (330 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 34 lb ft (46 Nm) |
Transmission
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1.1 m3) |
