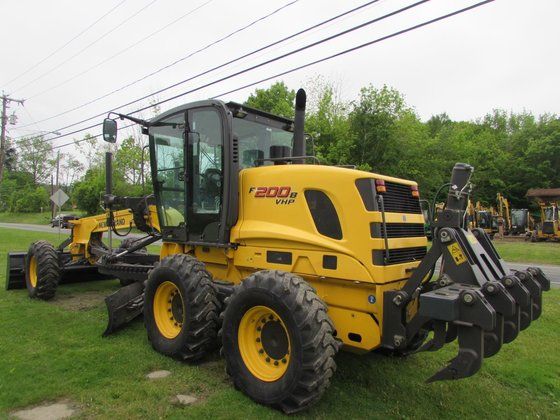

New Holland F200
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.07 ft in (8555 mm) |
| Width Over Tires | 8.7 ft in (2650 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Rear Ground Clearance | 2.01 ft in (610 mm) |
| Tandem Axle Wheelbase | 5.26 ft in (1602 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.96 ft in (3340 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6 CTAA 8.3 Tier 2 |
| Power Measured @ | 2200 rpm |
| Net Torque Gears 7-8 | 200 lb ft (271.2 Nm) |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | turbocharged |
Operational
| Hydraulic System Fluid Capacity | 25.3 gal (95.6 L) |
| Max Operation Weight - Front Axle | 11250.2 lb (5103 kg) |
| Max Operation Weight - Rear Axle | 26779.6 lb (12147 kg) |
| Max Operation Weight - Total | 38029.8 lb (17250 kg) |
| Oil System Fluid Capacity | 5.1 gal (19 L) |
| Fuel Capacity | 90.1 gal (341 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 5.9 gal (22 L) |
| Rear Diff/Final Drive Fluid Capacity | 6.7 gal (25 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (3 L) |
| Tandem Case Fluid Capacity (Each) | 6.1 gal (23 L) |
| Tire Size | 14.00 x 24 (10PR) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 24 ft in (7.3 m) |
Transmission
| Transmission Type | Direct Drive PowerShift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.8 mph (43 km/h) |
| Max Speed - Reverse | 19.1 mph (30.6 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 19 degrees |
| Ground Clearance | 2.1 ft in (622 mm) |
Moldboard
| Moldboard Width | 14 ft in (4267 mm) |
| Moldboard Height | 26.5 in (671 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 28.1 in (712 mm) |
| Side Shift Left | 21 in (533 mm) |
| Side Shift Right | 27.1 in (686 mm) |
| Blade Down Pressure | 23997.4 lb (10885 kg) |
Hydraulic System
| Pump Type | Full Hydraulic Load Sensing |
| Pump Flow | 49.2 gal/min (186 L/min) |
| Relief Valve Pressure | 2596.2 psi (17900 kPa) |
Circle
| Diameter | 69.1 in (1753 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.9 in (1978 mm) |
| Max Reach Outside Tires - Right | 85.6 in (2174 mm) |
| Max Lift Above Ground | 17.6 in (445 mm) |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 5 degrees |
