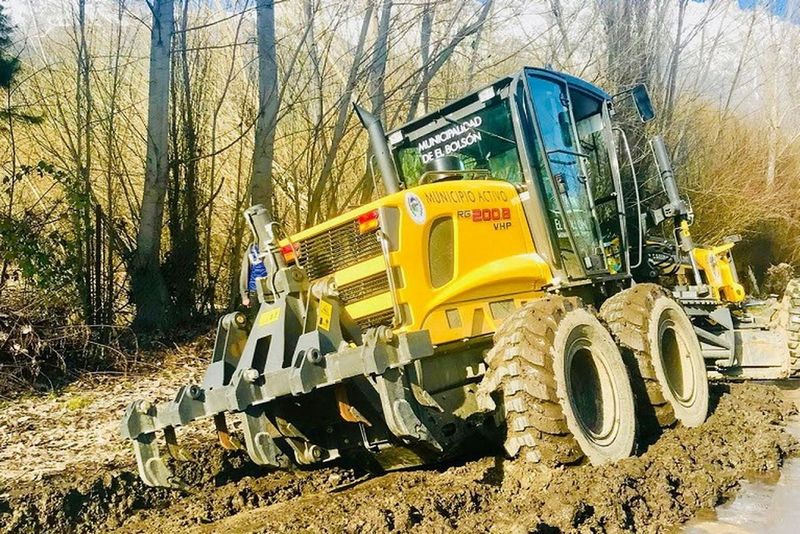

New Holland RG200.B
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.07 ft in (8555 mm) |
| Width Over Tires | 8.4 ft in (2560 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Rear Ground Clearance | 1.25 ft in (378 mm) |
| Tandem Axle Wheelbase | 5.26 ft in (1601 mm) |
| Front Ground Clearance | 2.01 ft in (610 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.31 ft in (3140 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT 8.3 |
| Max Power | 200 hp (149.2 kw) |
| Net Power Gears 7-8 | 200 hp (149.2 kw) |
| Net Torque Gears 7-8 | 640 lb ft (867.8 Nm) |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 11226 lb (5092 kg) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Std Operation Weight - Rear Axle | 26724.5 lb (12122 kg) |
| Std Operation Weight - Total | 37950.4 lb (17214 kg) |
| Max Operation Weight - Front Axle | 4612.1 lb (2092 kg) |
| Max Operation Weight - Rear Axle | 26724.5 lb (12122 kg) |
| Max Operation Weight - Total | 37950.4 lb (17214 kg) |
| Fuel Capacity | 90.1 gal (341 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 7.6 gal (28.5 L) |
| Rear Diff/Final Drive Fluid Capacity | 3.2 gal (12 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (2.8 L) |
| Tandem Case Fluid Capacity (Each) | 6 gal (22.7 L) |
| Tire Size | fireston 14x24 10 ply |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 23914.1 ft in (7289 m) |
Transmission
| Transmission Type | direct drive power shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.8 mph (43 km/h) |
| Max Speed - Reverse | 19.1 mph (30.6 km/h) |
Front Axle
| Wheel Lean | 17.5 degrees |
| Oscillation - Total | 19 degrees |
| Ground Clearance | 2.1 ft in (622 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 24.5 in (622 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 28 in (711 mm) |
| Blade Down Pressure | 23955 lb (10865.9 kg) |
Hydraulic System
| Pump Type | variable displacement piston |
| Pump Flow | 49 gal/min (185.5 L/min) |
| Relief Valve Pressure | 2800 psi (19305.4 kPa) |
Circle
| Diameter | 69.1 in (1753 mm) |
| Rotation | 360 degrees |
| Shift Left | 21 in (533 mm) |
| Shift Right | 27.1 in (686 mm) |
| Max Reach Outside Tires - Left | 77.9 in (1978 mm) |
| Max Reach Outside Tires - Right | 85.6 in (2174 mm) |
| Max Lift Above Ground | 17.6 in (445 mm) |
| Blade Tip Angle - Front | 42 degrees |
| Blade Tip Angle - Rear | 90 degrees |
