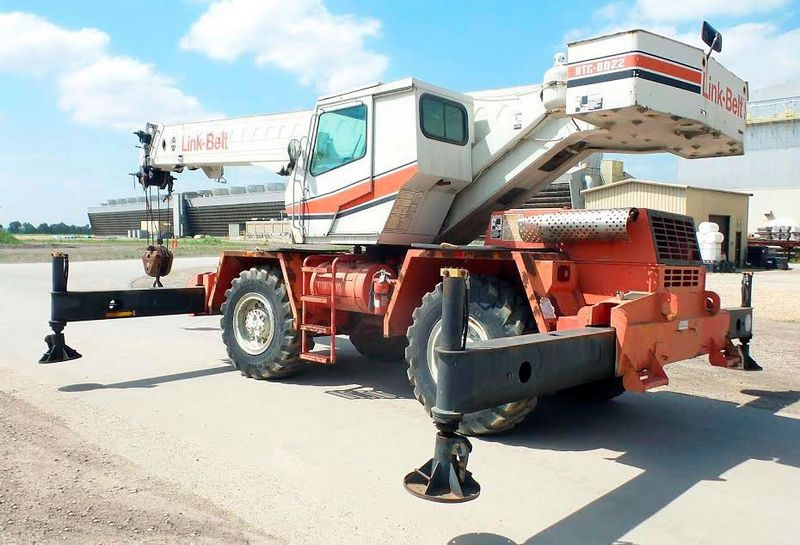

Link-Belt RTC8022
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 27.14 ft in (8.27 m) |
| Max Height @ Max Raise Angle - No Jib | 70.12 ft in (21.37 m) |
| Max Elevating Angle | 78 degrees |
| Number Of Sections | 3 |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 32.49 ft in (9900 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 10.7 ft in (3260 mm) |
| Wheelbase | 122.05 in (3100 mm) |
| Width W/ Outriggers Extended | 19.89 ft in (6060 mm) |
| Carrier/Base Length | 21653.55 ft in (6600 m) |
| Upper Structure Tail Swing Radius | 17.75 ft in (5410 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | 46BT 3.9 |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 293 lb ft (397.3 Nm) |
| Displacement | 239.3 cu in (4 L) |
| Bore | 4.1 in (102.1 mm) |
| Stroke | 4.8 in (119.9 mm) |
| Crankcase Capacity | 10.98 L |
Operational
| Operating Weight | 36138.2 lb (16392 kg) |
| Fuel Capacity | 40 gal (151.5 L) |
| Hydraulic System Fluid Capacity | 63 gal (238.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 16.00 x 24 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 24.3 mph (39.1 km/h) |
