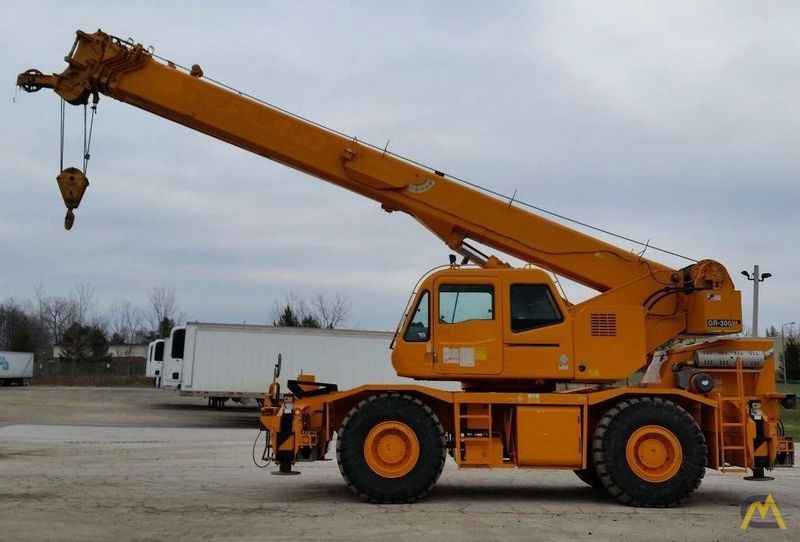

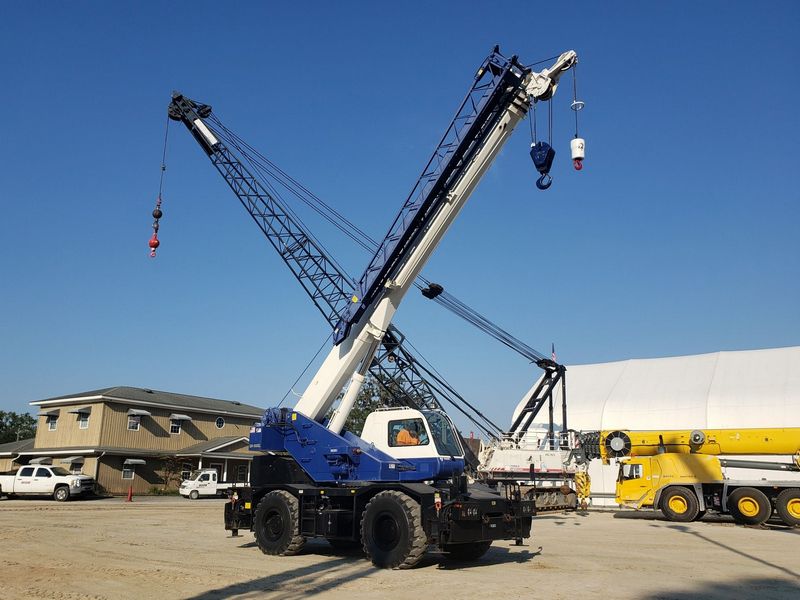

Tadano GR300XL-1
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 42 ft in (12.81 m) |
| Max Height @ Max Raise Angle - No Jib | 112 ft in (34.14 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 81 degrees |
| Max Operating Radius | 90 ft in (27.44 m) |
| Swing Speed | 2.7 rpm |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 36.9 ft in (11245 mm) |
| Transport Width | 8.91 ft in (2715 mm) |
| Transport Height | 11.6 ft in (3535 mm) |
| Wheelbase | 11.49 in (3500 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier/Base Length | 24.02 ft in (7320 m) |
| Upper Structure Tail Swing Radius | 10.93 ft in (3330 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 215 hp (160.4 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 620 lb ft (840.7 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 59183 lb (26845 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-25 24PR |
Transmission
| Transmission Type | full automatic powershift |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 29.3 mph (47 km/h) |
