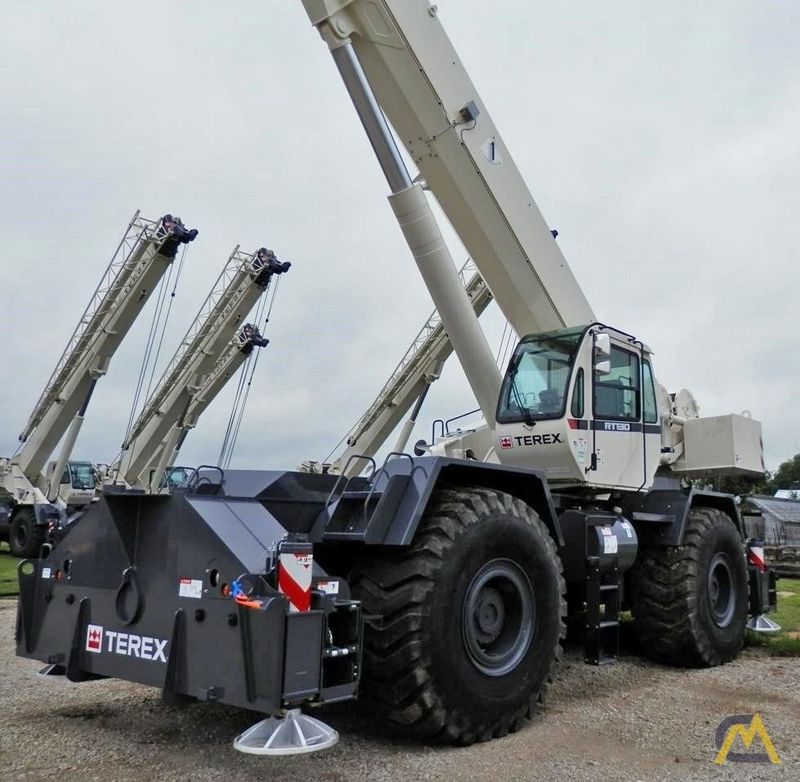

Terex RT345-1XL
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.75 ft in (10.29 m) |
| Max Height @ Max Raise Angle - No Jib | 105 ft in (32.01 m) |
| Max Elevating Angle | 76 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 42.3 ft in (12893.04 mm) |
| Transport Width | 10.2 ft in (3108.96 mm) |
| Transport Height | 11.5 ft in (3505.2 mm) |
| Wheelbase | 150.5 in (3822.7 mm) |
| Ground Clearance | 1.4 ft in (426.72 mm) |
| Width W/ Outriggers Extended | 24 ft in (7315.2 mm) |
| Carrier/Base Length | 23.1 ft in (7.05 m) |
| Upper Structure Tail Swing Radius | 9 ft in (2743.2 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 540 lb ft (732.2 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 114 gal (431.6 L) |
| Tire Size | 26.5 x 25 - 26PR |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Max Speed - Forward | 15.3 mph (24.5 km/h) |
