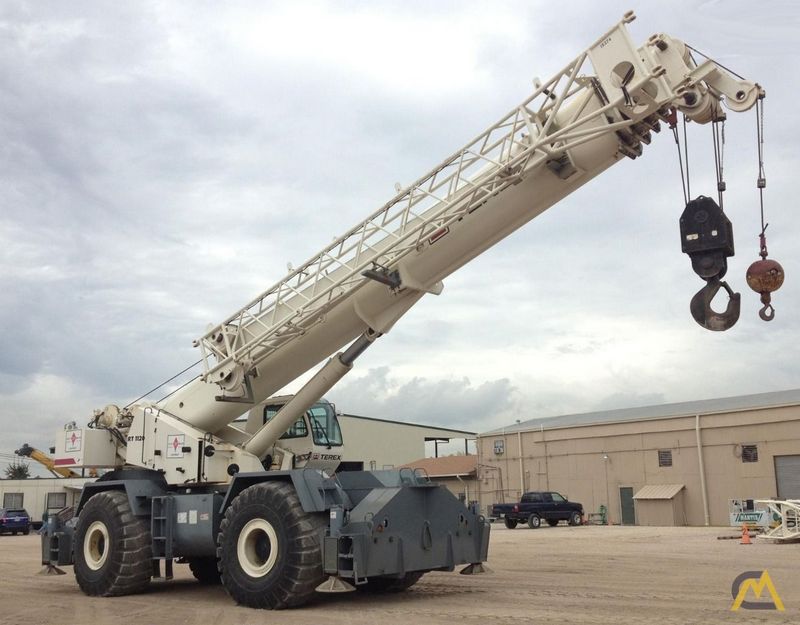

Terex RT1120
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 41 ft in (12.5 m) |
| Max Height @ Max Raise Angle - No Jib | 155 ft in (47.25 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Swing Speed | 1.5 rpm |
Dimensions
| Transport Length | 49.2 ft in (14994 mm) |
| Transport Width | 11.56 ft in (3523 mm) |
| Transport Height | 13.03 ft in (3970 mm) |
| Wheelbase | 179.93 in (4570 mm) |
| Ground Clearance | 1.88 ft in (572 mm) |
| Carrier/Base Length | 26666.67 ft in (8128 m) |
| Upper Structure Tail Swing Radius | 15.92 ft in (4851 mm) |
Engine
| Air Filter Type | Dry type |
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSC-300 |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 262.6 lb ft (356 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 506.5 cu in (8.3 L) |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.4 in (134.9 mm) |
| Aspiration | Turbocharged & Charge air cooled |
Operational
| Operating Weight | 141999.8 lb (64410 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 304 gal (1150.8 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
| Tire Size | 32.25 x 29 |
Transmission
| Transmission Type | Full Power-Shift Transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
