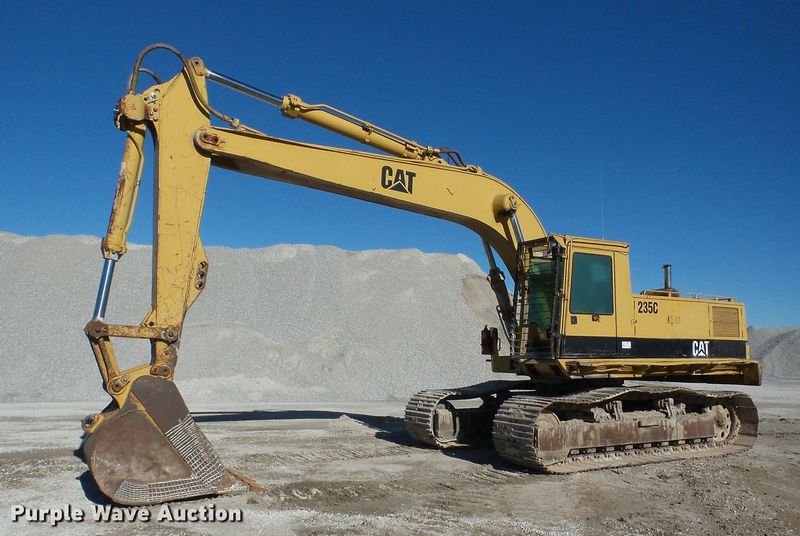

Caterpillar 235C
Browse All Caterpillar or Shovel Models
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 22.87 ft in (6970 mm) |
| Max Vertical Wall Dig Depth | 15.72 ft in (4790 mm) |
| Max Cutting Height | 31.34 ft in (9550 mm) |
| Max Dump Height | 20.71 ft in (6310 mm) |
| Max Reach On Ground | 35.7 ft in (10880 mm) |
| Backhoe Boom / Stick | Stick 8'0" (2440mm) |
Backhoe Boom / Stick 2
| Max Cutting Height | 31.76 ft in (9680 mm) |
| Max Dump Height | 21.13 ft in (6440 mm) |
| Max Vertical Wall Dig Depth | 17.03 ft in (5190 mm) |
| Max Dig Depth | 24.38 ft in (7430 mm) |
| Max Reach On Ground | 37.08 ft in (11300 mm) |
| Backhoe Boom / Stick | Stick 9'6" (2900mm) |
Backhoe Boom / Stick 3
| Max Cutting Height | 32.49 ft in (9900 mm) |
| Max Dump Height | 21.86 ft in (6660 mm) |
| Max Vertical Wall Dig Depth | 19.3 ft in (5880 mm) |
| Max Dig Depth | 26.88 ft in (8190 mm) |
| Backhoe Boom / Stick | Stick 12'0" (3660mm) |
| Max Reach On Ground | 39.38 ft in (12000 mm) |
Dimensions
| Width Over Tracks | 11.32 ft in (3450 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
| Ground Clearance | 1.74 in (530 mm) |
| Length Of Tracks | 16.47 ft in (5020 mm) |
| Upper Structure Ground Clearance | 3.68 ft in (1120 mm) |
Loading Shovel
| Max Dig Reach | 27.33 ft in (8330 mm) |
| Max Dump Height | 16.51 ft in (5030 mm) |
| Max Cutting Height | 30.09 ft in (9170 mm) |
Undercarriage
| Loading Shovel Shoe Width | 18 in (457 mm) |
| Backhoe Shoe Width 2 | 35.83 in (910 mm) |
| Backhoe Shoe Width 1 | 29.93 in (760 mm) |
| Max Travel Speed | 1.99 mph (3.2 km/h) |
| Loading Shovel Ground Pressure | 14.99 psi (103.3 kPa) |
| Backhoe Ground Pressure - Shoe 2 | 7.47 psi (51.48 kPa) |
| Backhoe Ground Pressure - Shoe 1 | 8.8 psi (60.63 kPa) |
| Loading Shovel Operating Weight | 26477.52 lb (12010 kg) |
| Backhoe Operating Weight - Shoe 1 | 92902.81 lb (42140 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 250 hp (186.5 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Fuel Capacity | 130 gal (492 L) |
