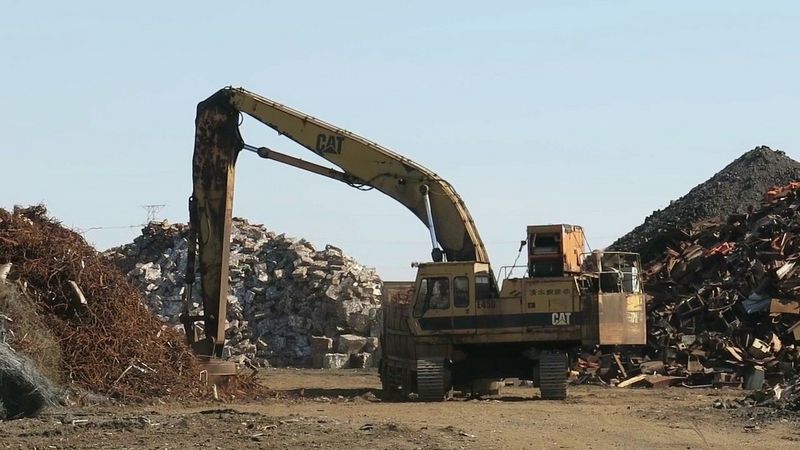

Caterpillar E450
Browse All Caterpillar or Shovel Models
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 25.27 ft in (7700 mm) |
| Max Vertical Wall Dig Depth | 21.26 ft in (6480 mm) |
| Max Cutting Height | 35.44 ft in (10800 mm) |
| Max Dump Height | 24.28 ft in (7400 mm) |
| Max Reach On Ground | 38.26 ft in (11660 mm) |
| Backhoe Boom / Stick | Stick 10'2" (3100mm) |
Backhoe Boom / Stick 2
| Max Cutting Height | 36.23 ft in (11040 mm) |
| Max Dump Height | 25.07 ft in (7640 mm) |
| Max Vertical Wall Dig Depth | 23.46 ft in (7150 mm) |
| Max Dig Depth | 27.56 ft in (8400 mm) |
| Max Reach On Ground | 40.42 ft in (12320 mm) |
| Backhoe Boom / Stick | Stick 12'5" (3800mm) |
Backhoe Boom / Stick 3
| Max Cutting Height | 36.59 ft in (11150 mm) |
| Max Dump Height | 26.42 ft in (8050 mm) |
| Max Vertical Wall Dig Depth | 26.42 ft in (8050 mm) |
| Max Dig Depth | 30.32 ft in (9240 mm) |
| Backhoe Boom / Stick | Stick 15'9" (4800mm) |
| Max Reach On Ground | 42.92 ft in (13080 mm) |
Dimensions
| Width Over Tracks | 10.34 ft in (3150 mm) |
| Height To Top Of Cab | 11.06 ft in (3370 mm) |
| Ground Clearance | 1.97 in (600 mm) |
| Upper Structure Ground Clearance | 4.7 ft in (1430 mm) |
| Length Of Tracks | 16.82 ft in (5125 mm) |
Loading Shovel
| Max Dig Reach | 27.47 ft in (8370 mm) |
| Max Dump Height | 23.56 ft in (7180 mm) |
| Max Cutting Height | 31.96 ft in (9740 mm) |
Undercarriage
| Loading Shovel Shoe Width | 24.02 in (610 mm) |
| Backhoe Shoe Width 2 | 29.93 in (760 mm) |
| Backhoe Shoe Width 3 | 35.83 in (910 mm) |
| Backhoe Shoe Width 1 | 24.02 in (610 mm) |
| Backhoe Operating Weight - Shoe 2 | 101412.65 lb (46000 kg) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Backhoe Ground Pressure - Shoe 3 | 8.3 psi (57.19 kPa) |
| Backhoe Ground Pressure - Shoe 2 | 9.67 psi (66.63 kPa) |
| Backhoe Ground Pressure - Shoe 1 | 11.66 psi (80.34 kPa) |
| Loading Shovel Ground Pressure | 11.94 psi (82.32 kPa) |
| Loading Shovel Operating Weight | 101853.58 lb (46200 kg) |
Engine
| Engine Make | 2251 |
| Engine Model | C 6D22TC |
| Gross Power | 276.3 hp (206 kw) |
| Displacement | 680.5 cu in (11.2 L) |
Operational
| Fuel Capacity | 132.1 gal (500 L) |
